  11. Female Disconnect, vinyl barrel insulate

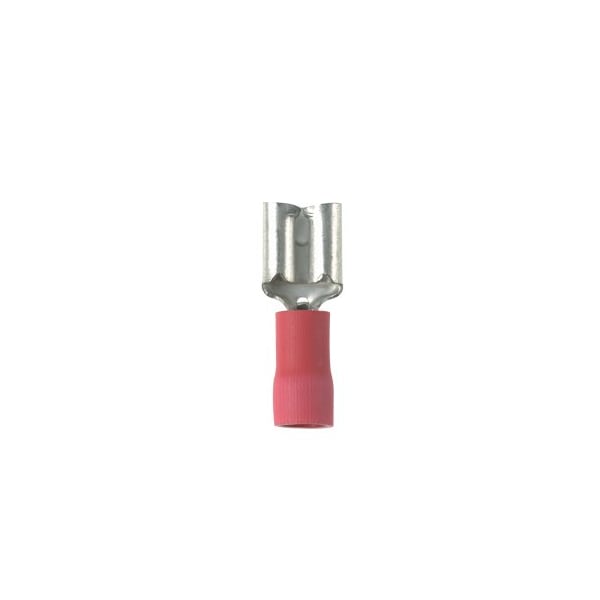

Panduit Female Disconnect, vinyl barrel insulate DVF18-188-MY - main

Female Disconnect, vinyl barrel insulate

  • Mfr # DVF18-188-MY

  • Zoro # G2855906

product price: $431.99
/pk 1000, $0.43/ea
Free Shipping & Returns

Key Features

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Red
Insulation Type
Barrel Insulated
Overall Length
0.76 in
Features
Flame Retardant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DVF18-188-MY
Zoro #
G2855906
UPC #
7498341058
Country of Origin
Mexico

Dimensions

Overall Length
0.76 in
Width
0.2"
Height
0.1 in
Overall Length (In.)
0.76
Minimum Copper Conductor Size (AWG)
#22
Wire Strip Length (In.)
11933
Tab Size (In.)
0.187 x 0.032
Minimum Wire Size (AWG)
#22
Overall Width (In.)
0.23
Overall Thickness (mm)
0.4
Overall Width (mm)
5.8
Overall Height (In.)
0.1
Maximum Copper Conductor Size (AWG)
#18
Insulation Diameter (mm)
3.5
Insulation Diameter (In.)
0.14
Overall Length (mm)
19.3
Tab Size (mm)
4.8 x 0.8
Wire Strip Length (mm)
7.1
Overall Thickness (In.)
0.16
Maximum Metric Conductor Size (mm²)
1
Minimum Metric Conductor Size (mm²)
0.5
Maximum Wire Size (AWG)
#18
Maximum Wire Insulation Diameter (mm)
3.5
Maximum Wire Insulation Diameter (In.)
0.14
Overall Height (mm)
2.5

Details

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Red
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Finish/Coating
Tin-Plated
Maximum Voltage (V)
300
Tongue Angle
Straight
Product Type
Disconnect
Maximum Operating Temperature (°C)
90
Note
DVF18-188-MY replaces DVF18-188-M
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (kV)
0.3
Flammability Rating
UL94V-0
Base Material
Brass
Barrel Type
Funnel
Disconnect Type
Female Disconnect
Insulation Material
Vinyl
Maximum Operating Temperature (°F)
194
Connector Details
1 x Quick Disconnect
Product Color
Red
Product Material
Copper
Product Name
Terminal Connector
Contact Plating
Tin
Product Class
Wire Termination
Max Operating Temperature
90 degrees celsius

Description

Female Disconnect, vinyl barrel insulated, 22 - 18 AWG, .187 x .020 tab size, funnel entry

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
