Shop PANDUIT

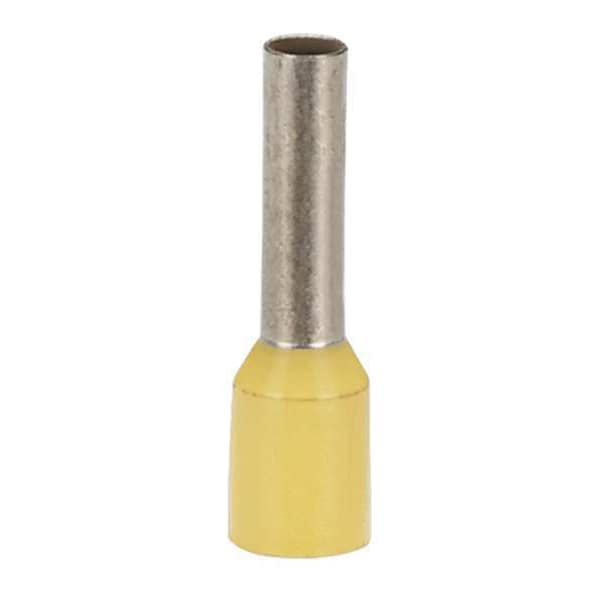

Ferrule, 14 AWG, PP, Yellow, 15/32in., PK500

  • Mfr # FSD79-8-D

  • Zoro # G2276550

product price:  $139.99
/pk 500, $0.28/ea
Free Shipping & Returns

Key Features

Wire Range
14 AWG
Insulation Type
Self-Insulated
Insulation Color
Yellow
Insertion Length
15/32 in
Overall Length
0.57 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FSD79-8-D
Zoro #
G2276550
UPC #
074983764006
Country of Origin
Germany

Dimensions

Insertion Length
15/32 in
Overall Length
0.57 in
Length
0.6"
Barrel Length
0.26 in
Maximum Wire Size
14 AWG
Strip Length
15/32 in
Minimum Wire Size
14 AWG
Barrel Diameter
0.14 in
Ferrule Diameter
0.09 in
Inside Dia.
0.08 in
Minimum Copper Conductor Size (AWG)
#14
Inside Diameter (mm)
2.1
Inside Diameter (In.)
0.08
Pin Length (In.)
0.31
Wire Strip Length (In.)
0.47
Wire Strip Length (mm)
11.9
Overall Length (In.)
0.57
Pin Length (mm)
8
Overall Length (mm)
14.5
Maximum Wire Insulation Diameter (In.)
0.14
Maximum Copper Conductor Size (AWG)
#14
Maximum Metric Conductor Size (mm²)
2.08
Maximum Wire Insulation Diameter (mm)
3.6
Copper Conductor Size (AWG)
#14
Maximum Metric Conductor Size (mm²)
2.08
Wire Rope Length
0.57 in

Details

Item
Wire Ferrule
Wire Range
14 AWG
Insulation Type
Self-Insulated
Insulation Color
Yellow
Max. Temp.
221 Degrees F
Connection Material
Tinned
Standards
CSA C22.2 No. 291-14, DIN 46228 Part 4
Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Finish
Tin-Plated
Color
Yellow
Material
Copper
For Use With
CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Contact Finish
Tin
Barrel Finish
Tin Plated
Compatible with Product Type
Terminal Block
Special Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Ferrule Material
Copper
Termination Style
Crimp
Maximum Conductors
1
Contact Material
Copper
Barrel Material
Copper
Compatible Manufacturer Model Number
CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Maximum Operating Temperature
221 Degrees F
Compatible with Series
CT
Insulation Material
Polypropylene
Product Material
Polypropylene
Product Name
Electric Wire Ferrule
Environmentally Friendly
Yes
Product Color
Yellow
Product Type
Electric Wire Ferrule
Standards Met
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Base Material
Copper
Maximum Operating Temperature (°C)
105
Flammability Rating
UL94-HB
Sub Brand
Pan-Term®
Maximum Operating Temperature (°F)
221
CSA Temperature Rating (°C)
105
Cover Material
Polypropylene
Packaging Type
Bag
Ferrule Type
Single Wire Standard
Color Code
Yellow
Finish/Coating
Tin-Plated
UL Temperature Rating (°C)
105
CSA Temperature Rating (°C)
105
UL Temperature Rating (°C)
105
Maximum Operating Temperature (°C)
105
Maximum Operating Temperature (°F)
221
Series
CT

Description

Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.09 in, Ferrule Material Copper, Insertion Length 15/32 in, Insulation Color Yellow, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 14 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228 Part 4, Barrel Diameter 0.14 in, Barrel Finish Tin Plated, Barrel Length 0.26 in, Barrel Material Copper
