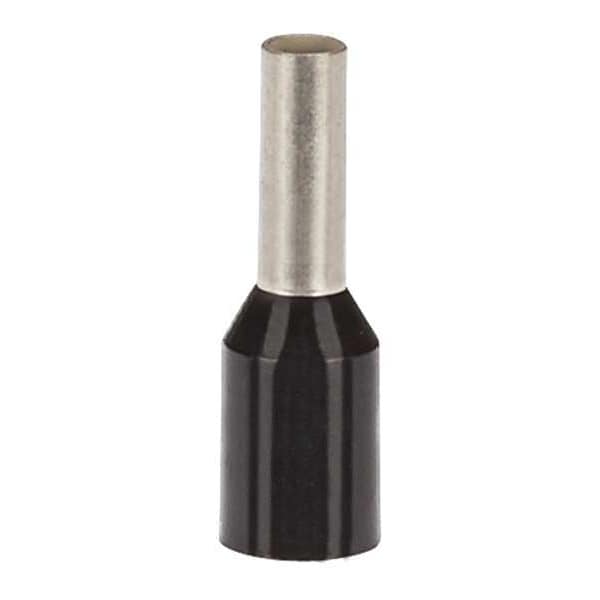

Ferrule, 16 AWG, PP, 3/8in., PK500
Mfr # FSD78-6-D
Zoro # G2600781
product price: $156.99
/pk 500, $0.31/ea
Free Shipping & Returns
Key Features
Wire Range
16 AWG
Insulation Type
Self-Insulated
Insulation Color
Black
Insertion Length
3/8 in
Overall Length
0.49 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FSD78-6-D
Zoro #
G2600781
UPC #
074983763993
Country of Origin
Germany
Dimensions
Insertion Length
3/8 in
Overall Length
0.49 in
Length
0.5"
Barrel Length
0.25 in
Maximum Wire Size
16 AWG
Barrel Diameter
0.12 in
Minimum Wire Size
16 AWG
Ferrule Diameter
0.08 in
Strip Length
3/8 in
Inside Dia.
0.07 in
Wire Strip Length (In.)
0.37
Copper Conductor Size (AWG)
#16
Maximum Wire Insulation Diameter (In.)
0.12
Inside Diameter (mm)
1.8
Wire Strip Length (mm)
9.5
Maximum Copper Conductor Size (AWG)
#16
Minimum Copper Conductor Size (AWG)
#16
Inside Diameter (In.)
0.07
Overall Length (mm)
12.5
Pin Length (mm)
6
Overall Length (In.)
0.49
Maximum Wire Insulation Diameter (mm)
3
Pin Length (In.)
0.24
Maximum Metric Conductor Size (mm²)
1.5
Maximum Metric Conductor Size (mm²)
1.5
Description
Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.08 in, Ferrule Material Copper, Insertion Length 3/8 in, Insulation Color Black, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 16 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228 Part 4, Barrel Diameter 0.12 in, Barrel Finish Tin Plated, Barrel Length 0.25 in, Barrel Material Copper
