Shop PANDUIT

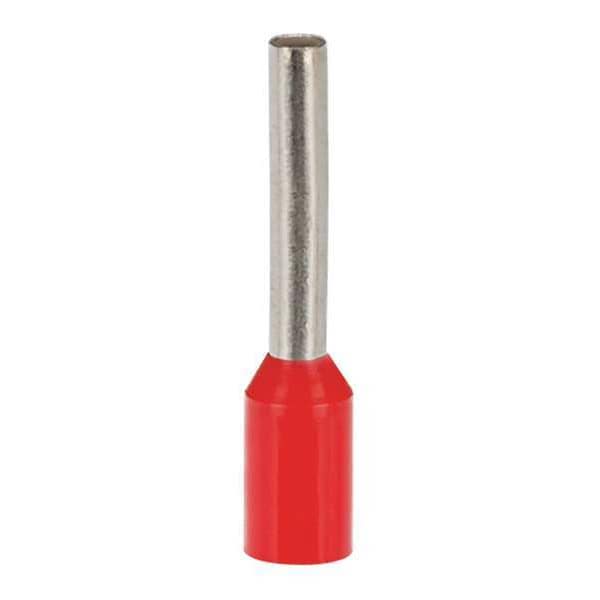

Ferrule, 18 AWG, PP, 17/32in., PK500

  • Mfr # FSD77-10-D
  • Zoro # G2276611
product price:
$
95.95
/pk of 500, $0.19/ea

Key Features

Wire Range
18 AWG
Insulation Type
Self-Insulated
Insulation Color
Red
Insertion Length
17/32 in
Overall Length
0.65 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FSD77-10-D
Zoro #
G2276611
UPC #
074983762538
Country of Origin
Germany

Dimensions

Insertion Length
17/32 in
Overall Length
0.65 in
Length
0.65 in
Minimum Wire Size
18 AWG
Maximum Wire Size
18 AWG
Barrel Length
0.26 in
Barrel Diameter
0.12 in
Strip Length
17/32 in
Ferrule Diameter
0.07 in
Inside Dia.
0.06 in
Inside Diameter (In.)
0.06
Maximum Wire Insulation Diameter (In.)
0.12
Pin Length (In.)
0.39
Wire Strip Length (In.)
17/32
Overall Length (mm)
16.5
Pin Length (mm)
10
Minimum Metric Conductor Size (mm²)
1
Maximum Metric Conductor Size (mm²)
1
Wire Strip Length (mm)
13.5
Inside Diameter (mm)
1.5
Maximum Wire Insulation Diameter (mm)
3
Overall Length (In.)
0.65
Minimum Metric Conductor Size (mm²)
1
Maximum Metric Conductor Size (mm²)
1
Wire Rope Length
0.65 in

Details

Item
Wire Ferrule
Wire Range
18 AWG
Insulation Type
Self-Insulated
Insulation Color
Red
Max. Temp.
221 Degrees F
Standards
CSA C22.2 No. 291-14, DIN 46228 Part 4
Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Connection Material
Tinned
Finish
Tin-Plated
For Use With
CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Material
Copper
Color
Red
Barrel Finish
Tin Plated
Compatible with Product Type
Terminal Block
Special Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Ferrule Material
Copper
Insulation Material
Polypropylene
Minimum Operating Temperature
-60 Degrees F
Contact Finish
Tin
Barrel Material
Copper
Maximum Conductors
1
Compatible Manufacturer Model Number
CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Contact Material
Copper
Compatible with Series
CT
Maximum Operating Temperature
221 Degrees F
Termination Style
Crimp
Product Type
Electric Wire Ferrule
Product Color
Red
Environmentally Friendly
Yes
Product Material
Copper
Product Name
Electric Wire Ferrule
Standards Met
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Flammability Rating
UL94-HB
Maximum Operating Temperature (°C)
105
Maximum Operating Temperature (°F)
221
Finish/Coating
Tin-Plated
Minimum Operating Temperature (°F)
-60
CSA Temperature Rating (°C)
105
Base Material
Copper
Sub Brand
Pan-Term®
Cover Material
Polypropylene
Packaging Type
Bag
Color Code
Red
Minimum Operating Temperature (°C)
-54
Ferrule Type
Single Wire Standard
UL Temperature Rating (°C)
105
Minimum Operating Temperature (°C)
-54
CSA Temperature Rating (°C)
105
Minimum Operating Temperature (°F)
-60
Maximum Operating Temperature (°F)
221
Maximum Operating Temperature (°C)
105
UL Temperature Rating (°C)
105
Series
CT

Description

Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.07 in, Ferrule Material Copper, Insertion Length 17/32 in, Insulation Color Red, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 18 AWG, Maximum Wire Size 18 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228 Part 4, Barrel Diameter 0.12 in, Barrel Finish Tin Plated, Barrel Length 0.26 in, Barrel Material Copper
