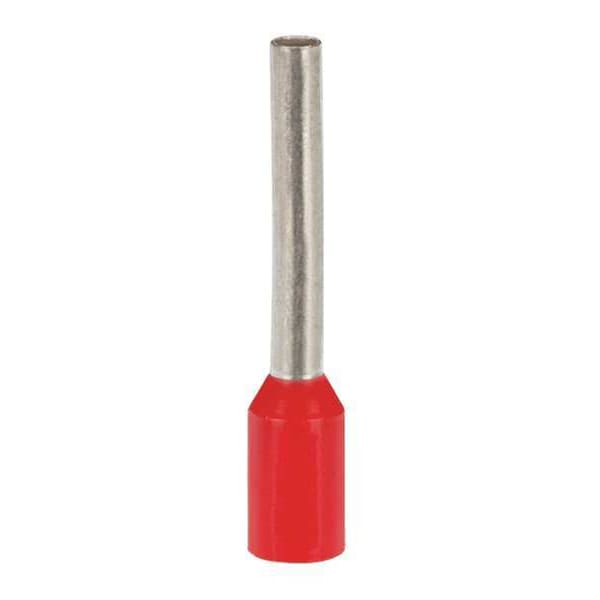

Ferrule, 18 AWG, PP, 5/8in., PK500
Mfr # FSD77-12-D
Zoro # G2276605
product price: $92.69
/pk 500, $0.19/ea
Free Shipping & Returns
Key Features
Wire Range
18 AWG
Insulation Type
Self-Insulated
Insulation Color
Red
Insertion Length
5/8 in
Overall Length
0.73 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FSD77-12-D
Zoro #
G2276605
UPC #
074983762545
Country of Origin
Germany
Dimensions
Insertion Length
5/8 in
Overall Length
0.73 in
Length
0.7"
Barrel Diameter
0.12 in
Barrel Length
0.26 in
Minimum Wire Size
18 AWG
Strip Length
5/8 in
Maximum Wire Size
18 AWG
Ferrule Diameter
0.07 in
Inside Dia.
0.06 in
Inside Diameter (In.)
0.06
Overall Length (In.)
0.73
Pin Length (In.)
0.47
Maximum Wire Insulation Diameter (mm)
3
Maximum Wire Insulation Diameter (In.)
0.12
Maximum Metric Conductor Size (mm²)
1
Wire Strip Length (In.)
45054
Inside Diameter (mm)
1.5
Pin Length (mm)
12
Minimum Metric Conductor Size (mm²)
1
Wire Strip Length (mm)
15.9
Overall Length (mm)
18.5
Minimum Metric Conductor Size (mm²)
1
Maximum Metric Conductor Size (mm²)
1
Description
Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.07 in, Ferrule Material Copper, Insertion Length 5/8 in, Insulation Color Red, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 18 AWG, Maximum Wire Size 18 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228, UL 486F, Barrel Diameter 0.12 in, Barrel Finish Tin Plated, Barrel Length 0.26 in, Barrel Material Copper
