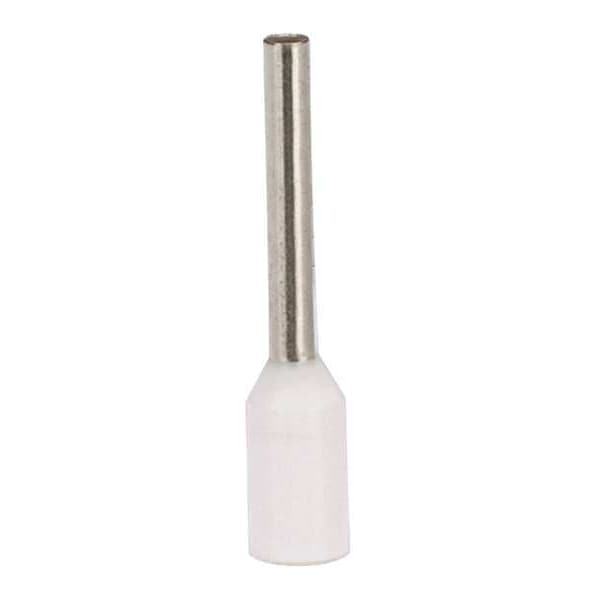

  11. Ferrule, 20 AWG, PP, 17/32in., PK500
Panduit Ferrule, 20 AWG, PP, 17/32in., PK500 FSD75-10-D - main

Ferrule, 20 AWG, PP, 17/32in., PK500

  • Mfr # FSD75-10-D

  • Zoro # G2276657

product price: $93.99
/pk 500, $0.19/ea
Free Shipping & Returns

Key Features

Wire Range
20 AWG
Insulation Type
Self-Insulated
Insulation Color
White
Insertion Length
17/32 in
Overall Length
0.61 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FSD75-10-D
Zoro #
G2276657
UPC #
074983762460
Country of Origin
Germany

Dimensions

Insertion Length
17/32 in
Overall Length
0.61 in
Length
0.6"
Maximum Wire Size
20 AWG
Barrel Length
0.22 in
Barrel Diameter
0.09 in
Minimum Wire Size
22 AWG
Strip Length
17/32 in
Ferrule Diameter
0.06 in
Inside Dia.
0.04 in
Overall Length (mm)
15.5
Maximum Wire Insulation Diameter (In.)
0.09
Overall Length (In.)
0.61
Wire Strip Length (mm)
13.5
Minimum Copper Conductor Size (AWG)
#22 - #20
Pin Length (In.)
0.39
Maximum Metric Conductor Size (mm²)
0.5
Pin Length (mm)
10
Inside Diameter (In.)
0.04
Minimum Metric Conductor Size (mm²)
0.5
Maximum Wire Insulation Diameter (mm)
2.5
Wire Strip Length (In.)
17/32
Inside Diameter (mm)
0.09
Maximum Copper Conductor Size (AWG)
#20
Copper Conductor Size (AWG)
#22 - #20
Minimum Metric Conductor Size (mm²)
0.5
Maximum Metric Conductor Size (mm²)
0.5

Details

Item
Ferrule
Wire Range
20 AWG
Insulation Type
Self-Insulated
Insulation Color
White
Max. Temp.
221 Degrees F
Connection Material
Tinned
Standards
CSA C22.2 No. 291-14, DIN 46228 Part 4
Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Color
White
For Use With
CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Material
Copper
Finish
Tin-Plated
Minimum Operating Temperature
-60 Degrees F
Special Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Contact Material
Copper
Compatible with Series
CT
Termination Style
Crimp
Compatible Manufacturer Model Number
CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Compatible with Product Type
Terminal Block
Maximum Conductors
1
Barrel Finish
Tin Plated
Ferrule Material
Copper
Insulation Material
Polypropylene
Contact Finish
Tin
Barrel Material
Copper
Maximum Operating Temperature
221 Degrees F
Product Name
Electric Wire Ferrule
Environmentally Friendly
Yes
Product Color
White
Product Material
Copper
Product Type
Electric Wire Ferrule
Finish/Coating
Tin-Plated
Maximum Operating Temperature (°C)
105
Color Code
White
Sub Brand
Pan-Term®
Minimum Operating Temperature (°F)
-60
Packaging Type
Bag
Base Material
Copper
CSA Temperature Rating (°C)
105
Standards Met
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F (with 20 AWG wire only)
Flammability Rating
UL94-HB
Ferrule Type
Single Wire Standard
Cover Material
Polypropylene
Maximum Operating Temperature (°F)
221
Minimum Operating Temperature (°C)
-54
Note
UL with 20 AWG wire only
UL Temperature Rating (°C)
105
Maximum Operating Temperature (°C)
105
Minimum Operating Temperature (°F)
-60
CSA Temperature Rating (°C)
105
Minimum Operating Temperature (°C)
-54
Maximum Operating Temperature (°F)
221
UL Temperature Rating (°C)
105

Description

Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.06 in, Ferrule Material Copper, Insertion Length 17/32 in, Insulation Color White, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 20 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228 Part 4, Barrel Diameter 0.09 in, Barrel Finish Tin Plated, Barrel Length 0.22 in, Barrel Material Copper
