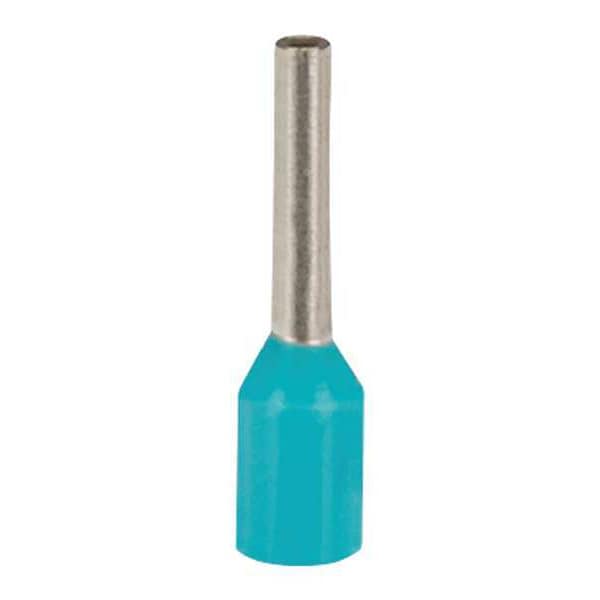

Ferrule, 22 AWG, PP, 3/8in., PK500
Mfr # FSD74-6-D
Zoro # G1921958
product price: $118.99
/pk 500, $0.24/ea
Free Shipping & Returns
Key Features
Wire Range
22 AWG
Insulation Type
Self-Insulated
Insulation Color
Turquoise
Insertion Length
3/8 in
Overall Length
0.49 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FSD74-6-D
Zoro #
G1921958
UPC #
074983763979
Country of Origin
Germany
Dimensions
Insertion Length
3/8 in
Overall Length
0.49 in
Length
0.5"
Maximum Wire Size
22 AWG
Strip Length
3/8 in
Barrel Diameter
0.07 in
Barrel Length
0.25 in
Minimum Wire Size
24 AWG
Ferrule Diameter
0.04 in
Inside Dia.
0.03 in
Overall Length (mm)
10.5
Minimum Copper Conductor Size (AWG)
#24 - #22
Inside Diameter (mm)
0.8
Overall Length (In.)
0.49
Pin Length (mm)
6
Pin Length (In.)
0.24
Wire Strip Length (In.)
0.37
Maximum Wire Insulation Diameter (In.)
0.07
Wire Strip Length (mm)
9.5
Maximum Metric Conductor Size (mm²)
0.34
Maximum Wire Insulation Diameter (mm)
2
Copper Conductor Size (AWG)
#24 - #22
Maximum Copper Conductor Size (AWG)
#22
Inside Diameter (In.)
0.03
Description
Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.04 in, Ferrule Material Copper, Insertion Length 3/8 in, Insulation Color Turquoise, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 24 AWG, Maximum Wire Size 22 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228 Part 4, Barrel Diameter 0.07 in, Barrel Finish Tin Plated, Barrel Length 0.25 in, Barrel Material Copper
