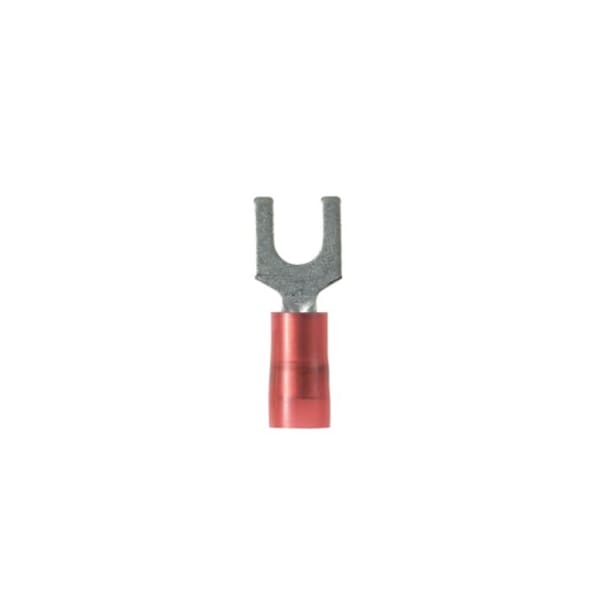

Fork Terminal, #8 Stud Size, 18 AWG, 600 V, Nylon Insulated, Red, Crimp Termination Only, 100 PK

  • Mfr # PN18-8F-C
  • Zoro # G0287169
product price:
$
107.99
/pk of 100, $1.08/ea
Free Shipping & Returns

Key Features

Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PN18-8F-C
Zoro #
G0287169
UPC #
074983803026
Country of Origin
Mexico

Dimensions

Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Stud Size
#8
Overall Length
0.85 in
Width
0.3"
Diameter
0.2"
Tongue Width
0.32 in
Tongue Length
0.43 in
Strip Length
1/4 in
Length
0.85 in
Barrel Length
0.43 in
Tongue Thickness
0.03 in

Details

Item
Fork Terminal
Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Insulation Type
Nylon
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed
Seam
Grip Sleeved
Features
Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener
Finish
Tin-Plated
Insulation Dia
0.145 in
Connector Plating
Tin
Barrel Type
Grip Sleeve
Insulation Coverage
Partial Coverage
Barrel Style
Insulation Grip, Strain Relief
Insulation Material
Nylon
Series
CT
Compatible Manufacturer Model Number
CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Compatible with Product Type
Crimp Tool, Crimper, Micro Crimp Tool
Special Features
Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications
Contact Finish
Tin
UL 94 Flammability Rating
HB

Description

Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 16 AWG, Stud Size #8, Termination Style Crimp, Tongue Length 0.43 in, UL 94 Flammability Rating HB, Standards CSA Certified, UL Listed, Barrel Length 0.43 in, Barrel Style Insulation Grip, Strain Relief, Compatible Grainger Part Number 376T26, 376U11, 38YU61
