  11. Grounding Beam Clamp, Beam Grounding Clamp Type, Copper

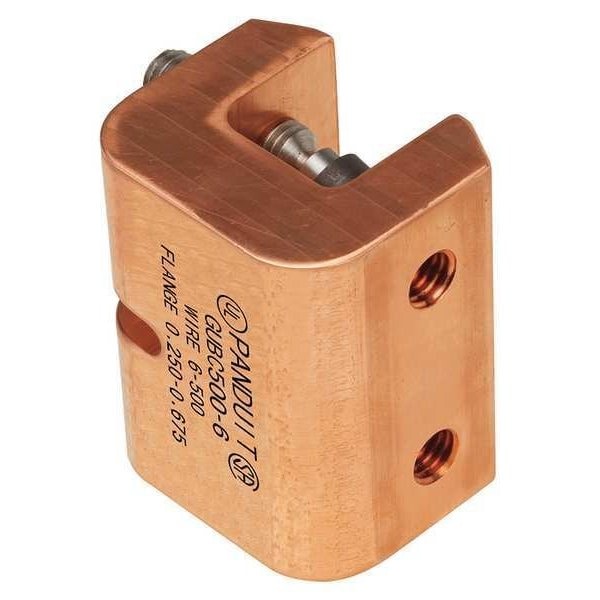

Panduit Grounding Beam Clamp, Beam Grounding Clamp Type, Copper GUBC500-6 - main

Grounding Beam Clamp, Beam Grounding Clamp Type, Copper

  • Mfr # GUBC500-6

  • Zoro # G104858832

product price: $299.99
/ea
Free Shipping & Returns

Key Features

Type
Beam Grounding Clamp
Material
Copper
Conductor Size (AWG)
6 to 500 kcmil
Standards
Meets - IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A).
Material - Grounding Connector
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GUBC500-6
Zoro #
G104858832
UPC #
7498300961
Country of Origin
Mexico

Dimensions

Conductor Size (AWG)
6 to 500 kcmil
Height
2.5 in
Width
2.13 in
Overall Width
2.13
Overall Height
2.5
Overall Length
3.15 in
Overall Height (mm)
63.5
Overall Height (In.)
2.5
Overall Width (mm)
54
Overall Width (In.)
2.13
Overall Length (mm)
80
Overall Length (In.)
3.15

Details

Item
Grounding Beam Clamp
Type
Beam Grounding Clamp
Material
Copper
Standards
Meets - IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A).
Material - Grounding Connector
Copper
Application
Utility/Ground Grid
Description/Special Features
Direct Burial
Material of Construction
Copper
Product Type
Beam Grounding Clamp
Standards Met
Meets - IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A).
Product Class
Grounding Mechanical Connectors

Description

The GUBC500-6 Universal beam grounding clamp fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams providing a mounting pad suitable for a two-hole compression lug. Install quickly and easily with standard 1/4" key hex wrench tooling. Designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
