This item is Discontinued.

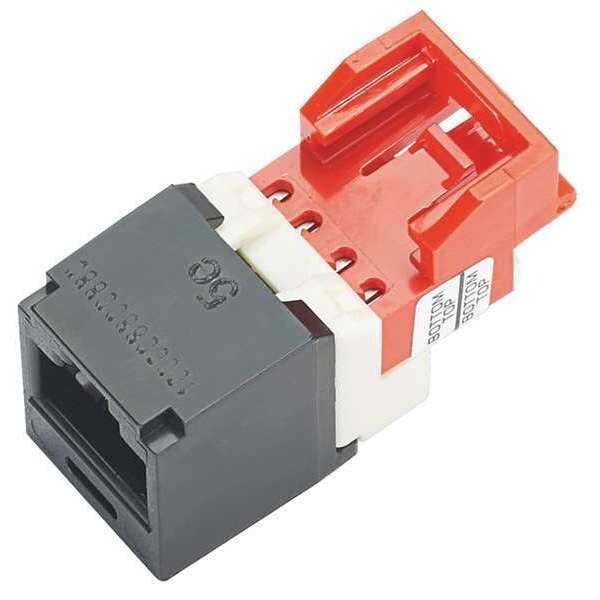

Panduit Jack, Mini Com, Cat 5e, Black CJ5E88TBL

Jack, Mini Com, Cat 5e, Black (Discontinued)

  • Mfr # CJ5E88TBL
  • Zoro # G2392652
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ5E88TBL
Zoro #
G2392652
UPC #
074983771370
Country of Origin
United States

Dimensions

Height
0.712 in
Width
0.624 in
Depth
1.432 in
Overall Length (In.)
1.43
Overall Height (In.)
0.71
Overall Width (In.)
0.62
Overall Depth (In.)
1.43
Overall Length (mm)
36.3
Overall Depth (mm)
36.3
Overall Height (mm)
18
Overall Width (mm)
15.7
Overall Width
5/8 in
Overall Depth
1 3/8 in
Overall Height
3/4 in

Details

Item
Modular Jack
Series
Mini Com
Cable Type
CAT5e
Material
Plastic
Color
Black
For Use With
Mini-Com Faceplate and Panels
Termination Type
Tool-Less
Number of Ports
1
Connector Type
Jack Module - Standard
Maximum Storage Temperature (°C)
70
Shield Type
Unshielded (UTP)
Contact Material
Plated Phosphor Bronze
Wiring Scheme
T568A/T568B
Body Material
ABS
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Minimum Storage Temperature (°C)
-40
Resistance Properties
Flame/Fire Resistant
Product Type
Network Connector
Module Type
Mini-Com®
Termination Style
TP Style
Maximum Operating Temperature (°C)
65
Minimum Operating Temperature (°C)
-10
Performance Level
Category 5e
Additional Information
Gold-Plated Contacts
Product Color
Black
Product Name
Mini-Com TX-5e Modular Connector
Environmentally Friendly
Yes
Contact Plating
Gold
Certifications & Standards
EIA/TIA-568
Product Line
Mini-Com
Connector Details
1 x RJ-45 Network Female
Minimum Storage Temperature (°F)
-40
Sub Brand
Pan-Net®
Maximum Storage Temperature (°F)
158
Minimum Operating Temperature (°F)
14
Maximum Operating Temperature (°F)
149
Compatible Cable Performance Category
5e
RCA Insulator Color
Black
Compatible Connector Type
RJ45
Standards
ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043

Description

Modular Jack, Termination Type Tool-Less, Compatible Cable Performance Category 5e, Compatible Connector Type RJ45, Color Black, RCA Insulator Color Black, Number of Ports 1, Overall Depth 1 3/8 in, Overall Height 3/4 in, Overall Width 5/8 in, Resistance Properties Flame/Fire Resistant, Standards ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
