This item is Discontinued.

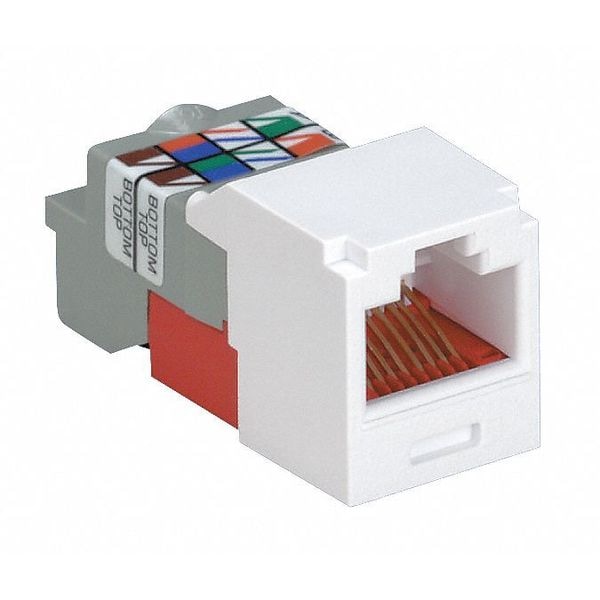

Panduit Jack, Mini Com, Cat 5e, Ivory CJ5E88TEI

Jack, Mini Com, Cat 5e, Ivory (Discontinued)

  • Mfr # CJ5E88TEI
  • Zoro # G2888076
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ5E88TEI
Zoro #
G2888076
UPC #
074983771325
Country of Origin
United States

Dimensions

Height
0.712 in
Depth
1.432 in
Width
0.624 in
Overall Depth (In.)
1.43
Overall Width (In.)
0.62
Overall Height (In.)
0.71
Overall Length (In.)
1.43
Overall Height (mm)
18
Overall Width (mm)
15.7
Overall Depth (mm)
36.3
Overall Length (mm)
36.3
Overall Width
5/8 in
Overall Height
11/16 in
Overall Depth
1 7/16 in

Details

Item
Modular Jack
Series
Mini Com
Cable Type
CAT5e
Material
Plastic
Color
Ivory
For Use With
Mini-Com Faceplate and Panels
Termination Type
Tool-Less
Number of Ports
1
Connector Type
Jack Module - Standard
Product Type
Jack Module
Module Type
Mini-Com®
Maximum Operating Temperature (°C)
65
Wiring Scheme
T568A/T568B
Minimum Storage Temperature (°C)
-40
Termination Style
TP Style
Minimum Operating Temperature (°C)
-10
Maximum Storage Temperature (°C)
70
Shield Type
Unshielded (UTP)
Resistance Properties
Flame/Fire Resistant
Body Material
ABS
Performance Level
Category 5e
Contact Material
Plated Phosphor Bronze
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Product Name
Mini-Com TX-5e Modular Connector
Environmentally Friendly
Yes
Certifications & Standards
EIA/TIA-568
Contact Plating
Gold
Additional Information
Gold-Plated Contacts
Connector Details
1 x RJ-45 Network Female
Product Line
Mini-Com
Product Color
Electric Ivory
Minimum Storage Temperature (°F)
-40
Sub Brand
Pan-Net®
Maximum Operating Temperature (°F)
149
Maximum Storage Temperature (°F)
158
Minimum Operating Temperature (°F)
14
RCA Insulator Color
Ivory
Compatible Cable Performance Category
5e
Standards
ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
Compatible Connector Type
RJ45

Description

Modular Jack, Termination Type Tool-Less, Compatible Cable Performance Category 5e, Compatible Connector Type RJ45, Color Ivory, RCA Insulator Color Ivory, Number of Ports 1, Overall Depth 1 7/16 in, Overall Height 11/16 in, Overall Width 5/8 in, Resistance Properties Flame/Fire Resistant, Standards ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
