This item is Discontinued.

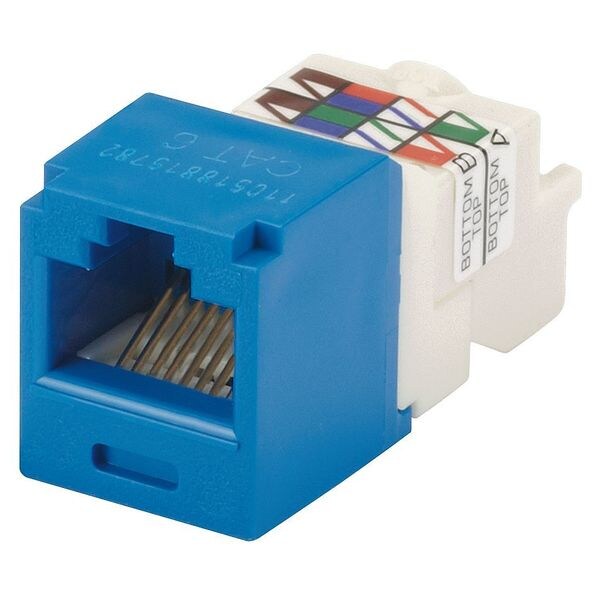

Panduit Jack, Mini Com, Cat 6, Blue CJ688TPBU

Jack, Mini Com, Cat 6, Blue (Discontinued)

  • Mfr # CJ688TPBU
  • Zoro # G2809834
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CJ688TPBU
Zoro #
G2809834
UPC #
074983992812
Country of Origin
United States

Dimensions

Width
0.624 in
Depth
1.432 in
Height
0.712 in
Overall Width
5/8 in
Overall Height
3/4 in
Overall Width (In.)
0.63
Overall Height (In.)
0.71
Overall Depth (In.)
1.43
Overall Length (In.)
1.43
Overall Depth (mm)
36.3
Overall Length (mm)
36.3
Overall Width (mm)
16
Overall Height (mm)
18
Overall Depth
1 3/8 in

Details

Item
Modular Jack
Series
Mini Com
Cable Type
CAT6
Material
Plastic
Color
Blue
For Use With
Mini-Com Faceplate and Panels
Termination Type
Tool-Less
Number of Ports
1
Standards
ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
Connector Type
Jack Module - Standard
Termination Style
TP Style
Module Type
Mini-Com®
Performance Level
Category 6
Minimum Operating Temperature (°C)
-10
Contact Material
Plated Phosphor Bronze
Maximum Operating Temperature (°C)
65
Standards Met
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Wiring Scheme
T568A/T568B
Product Type
Jack Module
Resistance Properties
Flame/Fire Resistant
Body Material
ABS
Minimum Storage Temperature (°C)
-40
Maximum Storage Temperature (°C)
70
Shield Type
Unshielded (UTP)
Connector Details
RJ-45 Network Female
Product Name
Mini-Com Cat.6 UTP Modular Jack
Product Line
Mini-Com
Environmentally Friendly
Yes
Product Color
Blue
Certifications & Standards
</li> </ul>TIA/EIA-568-B.2-AD10</li><li>ISO 11801 Class EA Edition 2.1</li><li>IEEE 802.3an-2006</li></ul>
Sub Brand
Pan-Net®
Minimum Storage Temperature (°F)
-40
Maximum Storage Temperature (°F)
158
Minimum Operating Temperature (°F)
14
Maximum Operating Temperature (°F)
149
Compatible Connector Type
RJ45
RCA Insulator Color
Blue
Compatible Cable Performance Category
6

Description

Modular Jack, Termination Type Tool-Less, Compatible Cable Performance Category 6, Compatible Connector Type RJ45, Color Blue, RCA Insulator Color Blue, Number of Ports 1, Overall Depth 1 3/8 in, Overall Height 3/4 in, Overall Width 5/8 in, Resistance Properties Flame/Fire Resistant, Standards ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
