This item is Discontinued.

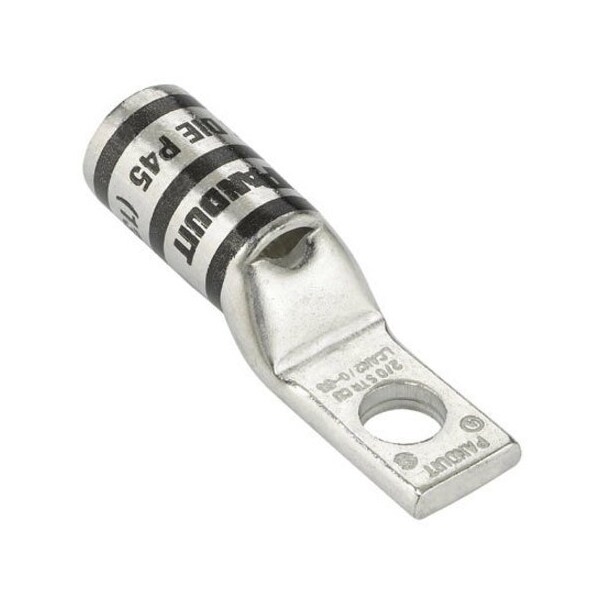

Panduit Lug Compression Connector, 1/0 AWG LCAN1/0-10-X

Lug Compression Connector, 1/0 AWG (Discontinued)

  • Mfr # LCAN1/0-10-X
  • Zoro # G0772849
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAN1/0-10-X
Zoro #
G0772849
UPC #
7498344491
Country of Origin
Mexico

Dimensions

Cable Size
1/0 AWG
Width
0.52"
Length
1.78"
Overall Length
1.78 in
Overall Length (In.)
1.78
Tongue Width (mm)
13.2
Barrel Length (In.)
0.94
Wire Strip Length (mm)
25.4
Tongue Thickness (In.)
0.13
Tongue Width (In.)
0.52
Tongue Thickness (mm)
3.3
Barrel Length (mm)
23.9
Stud Hole Size (mm)
4.8
Stud Hole Size (In.)
0.19
Copper Code Conductor Size (AWG)
36526
Wire Strip Length (In.)
1
Overall Length (mm)
45.2

Details

Connector Type
Standard Barrel
Material
Tin-Plated Copper
Color Code
Pink
Item
Lug Compression Connector
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant, Angled Connector
Product Type
Copper Compression Connectors - Lugs
Panduit Die Index Number
P42
Barrel Type
Standard Barrel Length with Inspection Window
Tongue Angle
Straight
Standards Met
C22.2 No. 65-13, 486A-486B File #E52164
Tongue Type
Narrow
Finish/Coating
Tin-Plated
Base Material
Copper
UL Temperature Rating (°C)
90
Burndy Die Index Number
12
Maximum Voltage (kV)
35
Product Material
Copper
Connector Details
1 x Terminal
Connector Plating
Tin
Product Name
Terminal Connector
Product Class
Wire Termination
