  6. Lug Compression Connector, 1/0 AWG Max, Standard Barrel, Copper, Pink

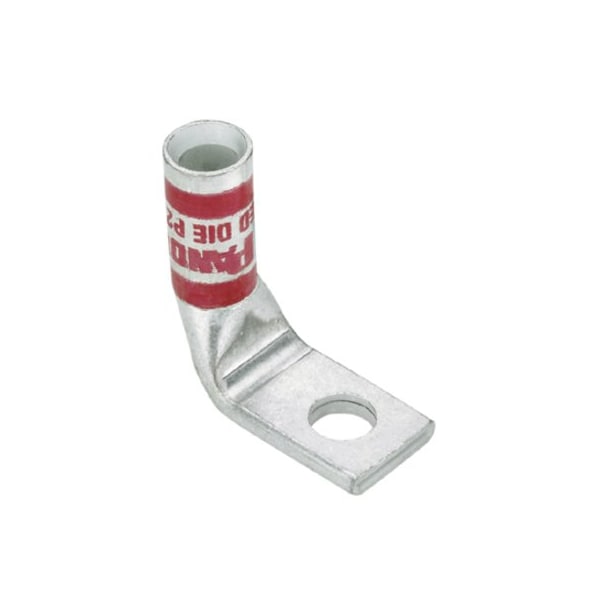

Panduit Lug Compression Connector, 1/0 AWG Max, Standard Barrel, Copper, Pink LCA1/0-38F-X - main

Lug Compression Connector, 1/0 AWG Max, Standard Barrel, Copper, Pink

  • Mfr # LCA1/0-38F-X

  • Zoro # G0771220

product price:  $10.19
/ea

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.76 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCA1/0-38F-X
Zoro #
G0771220
UPC #
7498356470
Country of Origin
Mexico

Dimensions

For Wire Size
1/0 AWG
Barrel Size
Standard
Tongue Width
0.76 in
Width
0.76"
Length
1.58"
Cable Size
1/0 AWG
Overall Length
1.58 in
Stud Hole Size (In.)
44993
Tongue Width (mm)
19.3
Tongue Thickness (mm)
3
Tongue Width (In.)
0.76
Overall Length (mm)
40.1
Copper Code Conductor Size (AWG)
36526
Wire Strip Length (mm)
25.4
Barrel Length (In.)
0.94
Wire Strip Length (In.)
1
Tongue Thickness (In.)
0.12
Barrel Length (mm)
23.9
Stud Hole Size (mm)
9.5
Overall Length (In.)
1.58

Details

Item
Lug Compression Connector
For Conductor Material
Copper
Material
Copper
Tongue Angle
90 Degrees Angled
Color Code
Pink
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connector Type
Standard Barrel
Connection Type
1 x Terminal
Connection Material
Tin
Features
90° Angled Connector, Corrosion Resistant
Maximum Voltage (kV)
35
Tongue Type
Standard
Burndy Die Index Number
12
Panduit Die Index Number
P42
UL Temperature Rating (°C)
90
Finish/Coating
Tin-Plated
Base Material
Copper
Product Type
Copper Compression Connectors - Lugs
Connector Plating
Tin
Connector Details
1 x Terminal
Product Material
Copper
Product Name
Terminal Connector
Product Class
Wire Termination

Description

Lug Compression Connector,1/0 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
