  6. Lug Compression Connector, 14-1/0 AWG

This item is Discontinued.

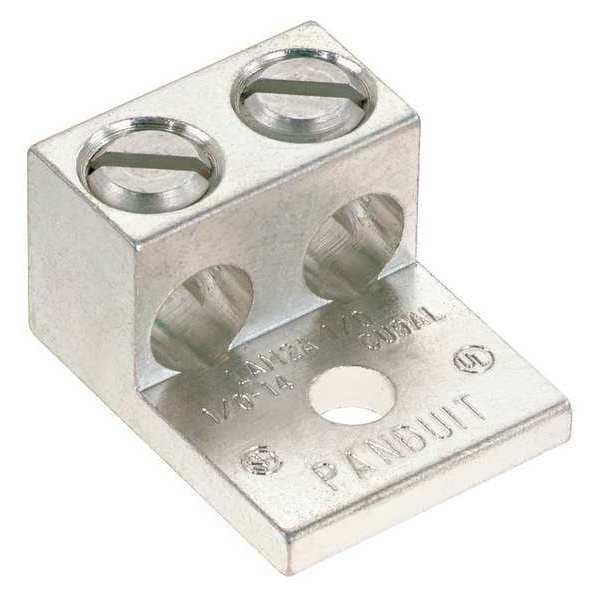

Panduit Lug Compression Connector, 14-1/0 AWG LAM2A1/0-14-6Y

Lug Compression Connector, 14-1/0 AWG (Discontinued)

  • Mfr # LAM2A1/0-14-6Y
  • Zoro # G0770992
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LAM2A1/0-14-6Y
Zoro #
G0770992
UPC #
74983592180
Country of Origin
India

Dimensions

Height
0.8 in
Overall Length
1.47 in
Minimum Copper Conductor Size (AWG STR)
14
Overall Length (In.)
1.48
Maximum Aluminum Conductor Size (AWG)
36526
Overall Height (In.)
0.77
Overall Length (mm)
37.5
Tongue Width (mm)
28.7
Overall Width (mm)
28.7
Barrel Length (In.)
0.63
Barrel Length (mm)
16
Tongue Thickness (In.)
0.19
Maximum Copper Conductor Size (AWG STR)
36526
Tongue Length (mm)
21.6
Tongue Length (In.)
0.85
Wire Strip Length (In.)
0.62
Overall Width (In.)
1.13
Tongue Thickness (mm)
4.8
Tongue Width (In.)
1.13
Overall Height (mm)
19.5
Stud Hole Size (In.)
44930
Wire Strip Length (mm)
15.7
Minimum Aluminum Conductor Size (AWG)
14

Details

Item
Lug Compression Connector,14-1/0 AWG
Features
Halogen Free
Application
Stranded Aluminum or Copper Code Conductor
Standards Met
cULus Listed for use up to 600V & Temperature Rated to 90°C
Base Material
Aluminum
Maximum Voltage (V)
600
Number of Holes
1
Finish/Coating
Tin-Plated
Barrel Type
Two Barrel
Slotted Screw
Yes
Tongue Type
Straight Tongue
Product Type
Mechanical Connectors - Lug
UL Temperature Rating (°C)
90
Tongue Angle
Straight
Product Name
Terminal Connector
Product Material
Aluminum, Copper
Connector Plating
Tin
Connector Details
1 x Barrel Plug
Product Class
Mechanical & Compression Lugs & Splices

Description

Lug Compression Connector,14-1/0 AWG
