  11. Lug Compression Connector, 2/0 AWG Max, Standard Barrel, Copper, Black

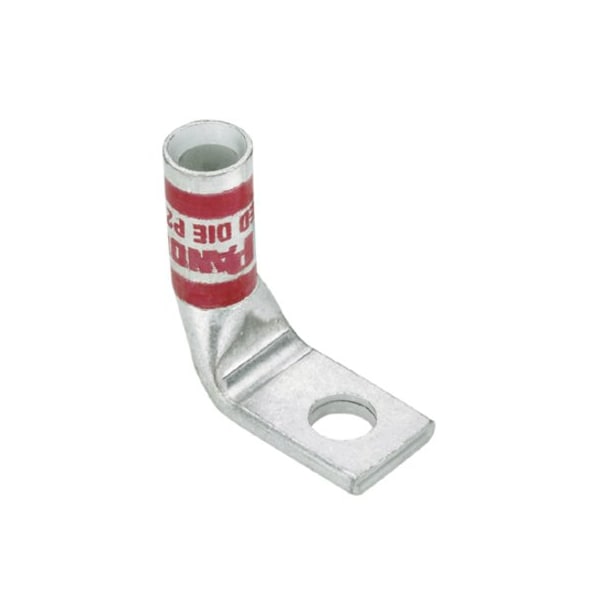

Panduit Lug Compression Connector, 2/0 AWG Max, Standard Barrel, Copper, Black LCA2/0-56F-X - main

Lug Compression Connector, 2/0 AWG Max, Standard Barrel, Copper, Black

  • Mfr # LCA2/0-56F-X

  • Zoro # G0771552

product price: $12.15
/ea

Key Features

Cable Size
2/0 AWG
Connector Type
Standard Barrel
Width
0.85"
Material
Copper
Length
1.59"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA2/0-56F-X
Zoro #
G0771552
UPC #
7498355925
Country of Origin
Mexico

Dimensions

Cable Size
2/0 AWG
Width
0.85"
Length
1.59"
Overall Length
1.59 in
Wire Strip Length (mm)
27
Outer Diameter (mm)
14.73
Inside Diameter (mm)
11.43
Tongue Thickness (In.)
0.13
Outer Diameter (In.)
0.58
Wire Strip Length (In.)
42370
Inside Diameter (In.)
0.45
Barrel Length (In.)
0.98
Overall Length (In.)
1.59
Tongue Width (mm)
21.6
Stud Hole Size (mm)
7.9
Stud Hole Size (In.)
45062
Tongue Width (In.)
0.85
Copper Code Conductor Size (AWG)
36557
Tongue Thickness (mm)
3.3
Overall Length (mm)
40.38
Barrel Length (mm)
24.9
Barrel Size
Standard
Tongue Width
0.85 in
For Wire Size
2/0 AWG

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Black
Item
Lug Compression Connector
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Die Code
13
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant, 90° Angled Connector
Base Material
Copper
T & B Die Index Number
13
Tongue Type
Standard
Tongue Angle
90 Degrees Angled
Lug Type
1 Stud Hole Lug
Burndy Die Index Number
13
Panduit Die Index Number
P45
Product Type
Copper Compression Connectors - Lugs
UL Temperature Rating (°C)
90
Maximum Voltage (kV)
35
Finish/Coating
Tin-Plated
Product Material
Copper
Product Name
Terminal Connector
Connector Details
1 x Terminal
Connector Plating
Tin
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,2/0 AWG
