  11. Lug Compression Connector, 2/0 AWG Max, Standard Barrel, Copper, Black

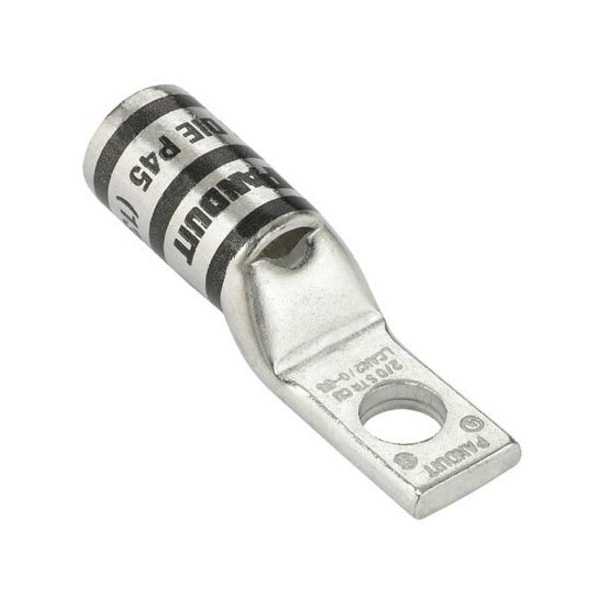

Panduit Lug Compression Connector, 2/0 AWG Max, Standard Barrel, Copper, Black LCAN2/0-14-X - main

Lug Compression Connector, 2/0 AWG Max, Standard Barrel, Copper, Black

  • Mfr # LCAN2/0-14-X

  • Zoro # G0772882

product price: $10.29
/ea

Key Features

Cable Size
2/0 AWG
Connector Type
Standard Barrel
Width
0.58"
Material
Copper
Length
2.09"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCAN2/0-14-X
Zoro #
G0772882
UPC #
7498360335
Country of Origin
Mexico

Dimensions

Cable Size
2/0 AWG
Width
0.58"
Length
2.09"
Overall Length
2.09 in
Tongue Width (In.)
0.58
Tongue Thickness (In.)
0.14
Tongue Width (mm)
14.7
Copper Code Conductor Size (AWG)
36557
Barrel Length (mm)
24.9
Overall Length (In.)
2.09
Stud Hole Size (mm)
6.4
Barrel Length (In.)
0.98
Wire Strip Length (mm)
27
Overall Length (mm)
53.1
Wire Strip Length (In.)
1.06
Stud Hole Size (In.)
44930
Tongue Thickness (mm)
3.6
Tongue Width
0.58 in
For Wire Size
2/0 AWG
Barrel Size
Standard

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Black
Item
Lug Compression Connector
Die Code
13
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connection Type
1 x Terminal
Connection Material
Tin
Features
Angled Connector, Corrosion Resistant
Burndy Die Index Number
13
Finish/Coating
Tin-Plated
Tongue Type
Narrow
Maximum Voltage (kV)
35
Tongue Angle
Straight
Product Type
Copper Compression Connectors - Lugs
Base Material
Copper
UL Temperature Rating (°C)
90
Panduit Die Index Number
P45
Product Name
Terminal Connector
Connector Plating
Tin
Connector Details
1 x Terminal
Product Material
Copper
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,2/0 AWG
