  6. Two-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Long Barrel, Copper, Orange

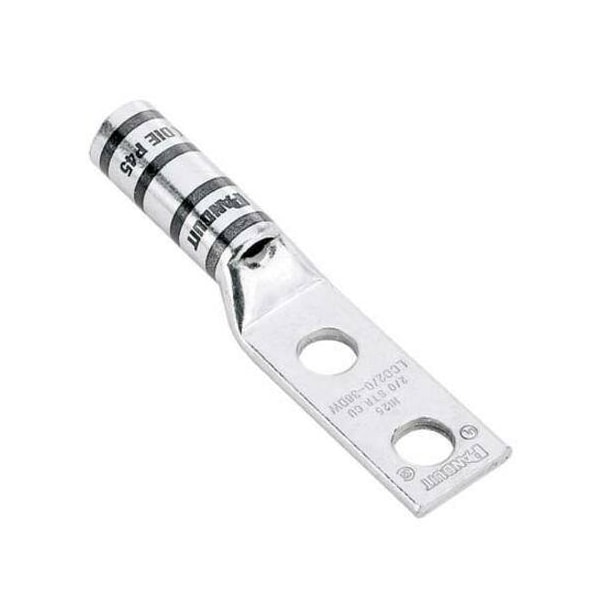

Panduit Two-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Long Barrel, Copper, Orange LCC3/0-12W-X - main

Two-Hole Compression Lug, 3/0 AWG Max, 1 to 2 in Stud, Long Barrel, Copper, Orange

  • Mfr # LCC3/0-12W-X

  • Zoro # G0775649

product price:  $17.79
/ea

Key Features

For Wire Size
3/0 AWG
For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCC3/0-12W-X
Zoro #
G0775649
UPC #
7498379822
Country of Origin
Mexico

Dimensions

For Wire Size
3/0 AWG
For Stud Size
1 to 2 in
Barrel Size
Long
Tongue Width
0.96 in
Cable Size
3/0 AWG
Length
4.87 in
Width
0.96 in
Overall Length
4.87 in
Barrel Length (mm)
38.1
Stud Hole Size (In.)
1 to 2
Overall Length (In.)
4.87
Stud Hole Size (mm)
12.7
Copper Code Conductor Size (AWG)
36586
Wire Strip Length (In.)
1.56
Tongue Width (mm)
24.4
Overall Length (mm)
123.7
Barrel Length (In.)
1.5
Wire Strip Length (mm)
39.7
Tongue Thickness (mm)
3.3
Tongue Width (In.)
0.96
Tongue Thickness (In.)
0.13

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Die Code
14
Color Code
Orange
Connector Type
Long Barrel
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant
Maximum Voltage (kV)
35
UL Temperature Rating (°C)
90
Panduit Die Index Number
P50
Stud Hole Spacing (In.)
1.75
Tongue Type
Standard
Burndy Die Index Number
14
Product Type
Copper Compression Connectors - Lugs
Finish/Coating
Tin-Plated
Base Material
Copper
Stud Hole Spacing (mm)
44.5
Connector Plating
Tin
Product Material
Copper
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Lugs, Splices, Split Bolts & Accessories

Description

Lug Compression Connector,3/0 AWG
