  11. Lug Compression Connector, 500 kcmil Max, Standard Barrel, Copper, Brown

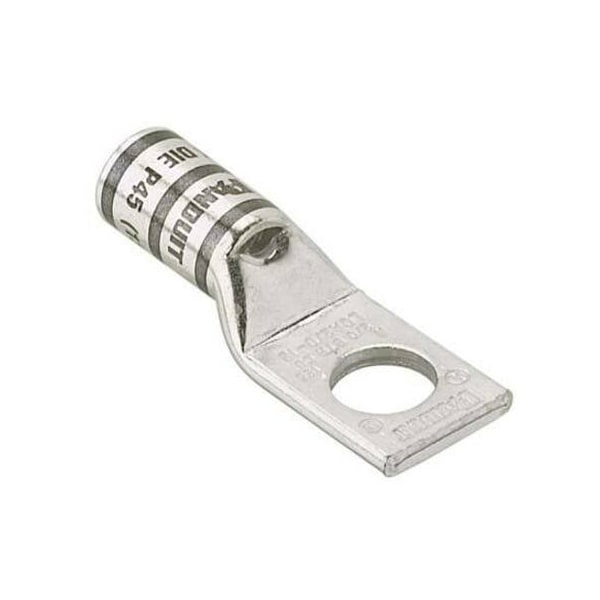

Panduit Lug Compression Connector, 500 kcmil Max, Standard Barrel, Copper, Brown LCA500-38-6 - main

Lug Compression Connector, 500 kcmil Max, Standard Barrel, Copper, Brown

  • Mfr # LCA500-38-6

  • Zoro # G0772060

product price: $22.06
/ea

Key Features

Cable Size
500 kcmil
Connector Type
Standard Barrel
Width
1.54"
Material
Copper
Length
3.39"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA500-38-6
Zoro #
G0772060
UPC #
7498371944
Country of Origin
Mexico

Dimensions

Cable Size
500 kcmil
Width
1.54"
Length
3.39"
Overall Length
3.39 in
Barrel Length (mm)
44.5
Tongue Thickness (In.)
0.22
Overall Length (In.)
3.39
Tongue Thickness (mm)
5.6
Tongue Width (In.)
1.54
Barrel Length (In.)
1.75
Wire Strip Length (mm)
46
Wire Strip Length (In.)
1.81
Stud Hole Size (In.)
44993
Tongue Width (mm)
39.1
Copper Code Conductor Size (kcmil)
500
Stud Hole Size (mm)
9.5
Overall Length (mm)
86.1
For Wire Size
500 kcmil
Barrel Size
Standard
Tongue Width
1.54 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Brown
Item
Lug Compression Connector
Die Code
20
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant, Angled Connector
UL Temperature Rating (°C)
90
Burndy Die Index Number
20
Panduit Die Index Number
P87
Tongue Type
Standard
Product Type
Copper Compression Connectors - Lugs
Tongue Angle
Straight
Maximum Voltage (kV)
35
Base Material
Copper
Finish/Coating
Tin-Plated
Product Material
Copper
Connector Plating
Tin
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Description

Lug Compression Connector,500 Kcmil

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
