  11. Lug Compression Connector, 6 AWG Max, Long Barrel, Copper, Blue

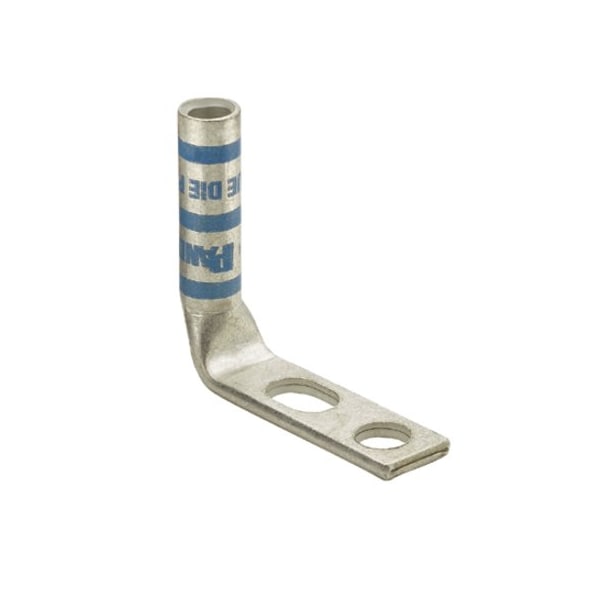

Panduit Lug Compression Connector, 6 AWG Max, Long Barrel, Copper, Blue LCC6-14JAWF-L - main

Lug Compression Connector, 6 AWG Max, Long Barrel, Copper, Blue

  • Mfr # LCC6-14JAWF-L

  • Zoro # G0776330

product price: $18.15
/ea

Key Features

Cable Size
6 AWG
Connector Type
Long Barrel
Width
0.48"
Material
Copper
Length
1.66"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCC6-14JAWF-L
Zoro #
G0776330
UPC #
7498363272
Country of Origin
Mexico

Dimensions

Cable Size
6 AWG
Width
0.48"
Length
1.66"
Overall Length
1.66 in
Overall Length (In.)
1.66
Tongue Thickness (In.)
0.08
Tongue Thickness (mm)
2
Tongue Width (mm)
12.2
Overall Length (mm)
42.2
Tongue Width (In.)
0.48
Wire Strip Length (mm)
28.6
Wire Strip Length (In.)
1.125
Barrel Length (mm)
27.2
Stud Hole Size (In.)
44930
Copper Code Conductor Size (AWG)
6
Stud Hole Size (mm)
6.4
Barrel Length (In.)
1.07
Tongue Width
0.48 in
For Wire Size
6 AWG
Barrel Size
Long

Details

Connector Type
Long Barrel
Material
Copper
Color Code
Blue
Item
Lug Compression Connector
Standards
CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
Die Code
7
Features
Corrosion Resistant, 90° Angled Connector
Connection Material
Tin
Connection Type
1 x Terminal
Maximum Voltage (kV)
35
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
7
Panduit Die Index Number
P24
Tongue Angle
90 Degrees Angled
Finish/Coating
Tin-Plated
Base Material
Copper
Stud Hole Spacing (In.)
0.63
T & B Die Index Number
24
UL Temperature Rating (°C)
90
Stud Hole Spacing (mm)
16
Tongue Type
Standard
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Material
Copper
Connector Plating
Tin
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Description

Lug Compression Connector,No.6 AWG
