  6. Lug Compression Connector, No.6 AWG, PK50

This item is Discontinued.

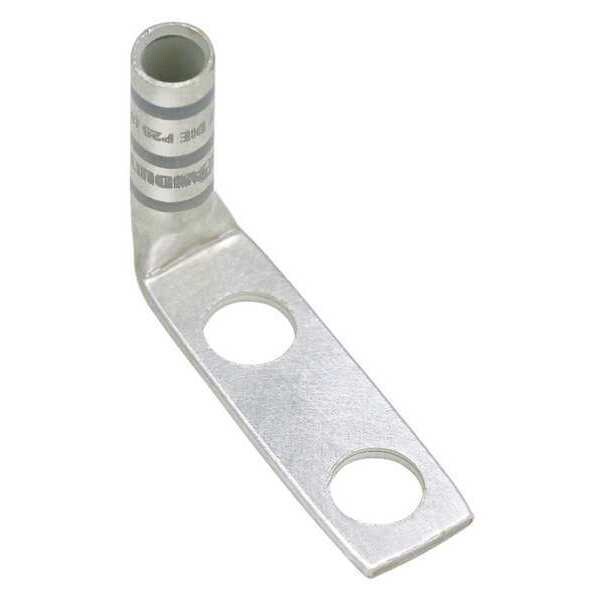

Panduit Lug Compression Connector, No.6 AWG, PK50 LCC6-14AF-L

Lug Compression Connector, No.6 AWG, PK50 (Discontinued)

  • Mfr # LCC6-14AF-L
  • Zoro # G0776297
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCC6-14AF-L
Zoro #
G0776297
UPC #
74983899913
Country of Origin
Mexico

Dimensions

Cable Size
6 AWG
Width
0.48"
Length
1.66"
Overall Length
1.66 in
Stud Hole Size (In.)
44930
Barrel Length (In.)
1.07
Wire Strip Length (In.)
1.13
Wire Strip Length (mm)
28.6
Barrel Length (mm)
27.2
Tongue Width (In.)
0.48
Tongue Width (mm)
12.2
Copper Code Conductor Size (AWG)
6
Overall Length (In.)
1.66
Stud Hole Size (mm)
6.4
Overall Length (mm)
42.2
Tongue Thickness (mm)
2
Tongue Thickness (In.)
0.08

Details

Connector Type
Long Barrel
Material
Tin-Plated Copper
Color Code
Blue
Item
Lug Compression Connector
Connection Material
Tin
Connection Type
1 x Terminal
Features
90° Angled Connector, Corrosion Resistant
Maximum Voltage (kV)
35
Barrel Type
Long Barrel Length without Inspection Window
Panduit Die Index Number
24
Finish/Coating
Tin-Plated
Tongue Type
Standard
Burndy Die Index Number
7
UL Temperature Rating (°C)
90
Base Material
Copper
Product Type
Copper Compression Connectors - Lugs
Stud Hole Spacing (In.)
0.63
Stud Hole Spacing (mm)
16
Product Material
Copper
Product Name
Terminal Connector
Connector Plating
Tin
Connector Details
1 x Terminal
Product Class
Wire Termination

Description

Lug Compression Connector,No.6 AWG,PK50, Package Quantity 50
