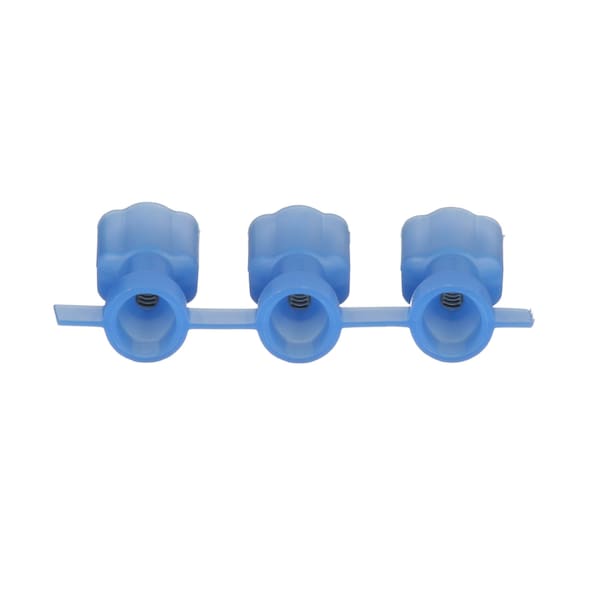

Male Disconnect, nylon fully insulated,

  • Mfr # DNF14250FIMX-2K
  • Zoro # G3037294
product price:
$
915.99
/pk of 2000, $0.46/ea
Free Shipping & Returns

Key Features

For Use With
Crimp press with CA9 (CD9-8B) or CA-800EZ (CD-800-8) applicator
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.97 in
Features
Molded, Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DNF14250FIMX-2K
Zoro #
G3037294
UPC #
7498334344
Country of Origin
Mexico
For Use With
Crimp press with CA9 (CD9-8B) or CA-800EZ (CD-800-8) applicator
Color Code
Blue
Insulation Type
Fully Insulated
Features
Molded, Flame Retardant
Disconnect Type
Male Tab Disconnect
Tongue Angle
Straight
Insulation Material
Nylon
Maximum Operating Temperature (°C)
105
Maximum Voltage (V)
600
Flammability Rating
UL94-HB
Product Type
Disconnect
Base Material
Brass
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Operating Temperature (°F)
221
Maximum Voltage (kV)
0.6
Barrel Type
Expanded Entry
Finish/Coating
Nickel-Plated
Seam Type
Butted
Product Name
Terminal Connector
Product Color
Blue
Product Material
Brass
Connector Details
1 x Quick Disconnect
Contact Plating
Nickel
Max Operating Temperature
105 degrees celsius
Product Class
Wire Termination

Dimensions

Overall Length
0.97 in
Width
0.4"
Height
0.29 in
Maximum Wire Insulation Diameter (In.)
0.24
Tab Size (In.)
0.250 x 0.032
Maximum Copper Conductor Size (AWG)
#14
Wire Strip Length (In.)
11933
Wire Strip Length (mm)
7.1
Tab Size (mm)
6.3 x 0.8
Overall Width (In.)
0.41
Minimum Wire Size (AWG)
#16
Overall Length (mm)
24.6
Minimum Copper Conductor Size (AWG)
#16
Insulation Diameter (In.)
0.24
Minimum Metric Conductor Size (mm²)
1.5
Insulation Diameter (mm)
6.2
Maximum Wire Size (AWG)
#14
Maximum Metric Conductor Size (mm²)
2.5
Overall Length (In.)
0.97
Maximum Wire Insulation Diameter (mm)
6.1
Overall Width (mm)
10.4

Description

Male Disconnect, nylon fully insulated, expanded entry, 16 - 14 AWG, .250 x .032 tab size, funnel entry
