Shop PANDUIT

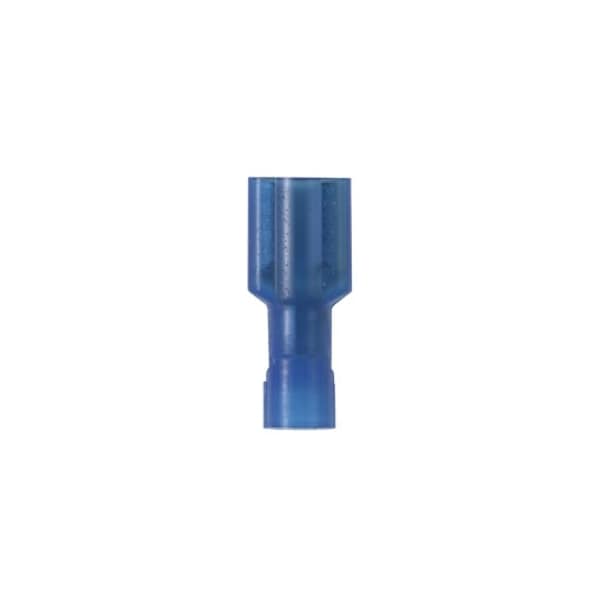

Female Disconnect, Nylon, 16-14AWG, PK1000

  • Mfr # DNF14-187FIB-M

  • Zoro # G0765331

product price:
$
361.99
/pk of 1000, $0.36/ea
Free Shipping & Returns

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.78 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF14-187FIB-M
Zoro #
G0765331
UPC #
7498375984
Country of Origin
Mexico

Dimensions

Overall Length
0.78 in
Height
0.22 in
Width
0.3"
Maximum Wire Insulation Diameter (mm)
4.1
Maximum Wire Insulation Diameter (In.)
0.16
Wire Strip Length (In.)
11933
Insulation Diameter (mm)
4.1
Tab Size (mm)
4.8 x 0.8
Overall Width (mm)
7.4
Maximum Copper Conductor Size (AWG)
#14
Maximum Metric Conductor Size (mm²)
2.5
Overall Length (In.)
0.78
Wire Strip Length (mm)
7.1
Tab Size (In.)
0.187 x 0.032
Maximum Wire Size (AWG)
#14
Overall Length (mm)
19.8
Minimum Wire Size (AWG)
#16
Minimum Copper Conductor Size (AWG)
#16
Insulation Diameter (In.)
0.16
Minimum Metric Conductor Size (mm²)
1.5
Overall Width (In.)
0.29

Details

Item
Female Disconnect,Nylon,16-14AWG,PK1000
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Features
Flame Retardant
Finish
Tinned
Maximum Operating Temperature (°F)
221
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Product Type
Disconnect
Finish/Coating
Tin-Plated
Disconnect Type
Female Disconnect
Maximum Voltage (V)
600
Tongue Angle
Straight
Maximum Voltage (kV)
0.6
Seam Type
Butted
Flammability Rating
UL94-HB
Base Material
Brass
Insulation Material
Nylon
Barrel Type
Funnel
Maximum Operating Temperature (°C)
105
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Contact Plating
Tin
Product Color
Blue
Product Class
Wire Termination
Max Operating Temperature
105 degrees celsius

Description

Female Disconnect,Nylon,16-14AWG,PK1000, Package Quantity 1000

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
