  11. Mechanical Connector, 250 Kcmil-10 AWG

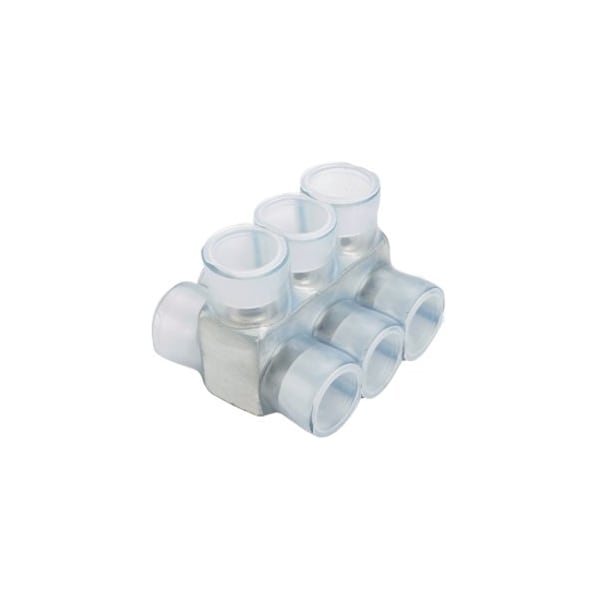

Panduit Mechanical Connector, 250 Kcmil-10 AWG PCSB250-2-6Y - main

Mechanical Connector, 250 Kcmil-10 AWG

  • Mfr # PCSB250-2-6Y

  • Zoro # G0781608

product price: $37.15
/ea

Key Features

Number of Ports
2
Insulation Material
Clear PVC
Width
2.6"
Length
2"
Minimum Aluminum Conductor Size (AWG)
10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PCSB250-2-6Y
Zoro #
G0781608
UPC #
7498359659
Country of Origin
United States

Dimensions

Width
2.6"
Length
2"
Minimum Aluminum Conductor Size (AWG)
10
Overall Length (In.)
2.03
Overall Length (mm)
51.5
Maximum Copper Conductor Size (kcmil)
250
Maximum Aluminum Conductor Size (kcmil)
250
Wire Strip Length (In.)
0.88
Overall Height (In.)
2.13
Overall Width (mm)
66.8
Overall Width (In.)
2.63
Wire Strip Length (mm)
22.3
Minimum Copper Conductor Size (AWG STR)
10
Overall Height (mm)
54.1
Hex Size (mm)
7.9
Height
2.1"
Overall Length
2.03 in
For Wire Size
10 AWG-250 kcmil

Details

Item
Mechanical Connector,250 Kcmil-10 AWG
Number of Ports
2
Insulation Material
Clear PVC
Finish/Coating
Tin-Plated
Maximum Voltage (V)
600
UL Temperature Rating (°C)
90
Product Type
Multi-Tap Mechanical Connectors, Double Sided
Standards Met
UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
Note
PCSB250-2-6Y replaces PCSB250-2-6
Base Material
Aluminum
Application
Aluminum or Copper Code Conductors
Product Color
Clear
Features
Double Sided
Product Line
Pan-Lug
Connector Details
Multi-tap Terminal
Product Material
Polyvinyl Chloride (PVC)
Product Name
Pan-Lug Terminal Connector
Product Class
Mechanical Lugs
Color
Clear
Body Material
Aluminum
Head Style
Hex
Connector Type
Double-Sided
Maximum Operating Temperature
90°C
For Conductor Material
Aluminum or Copper

Description

Mechanical Connector,250 Kcmil-10 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
