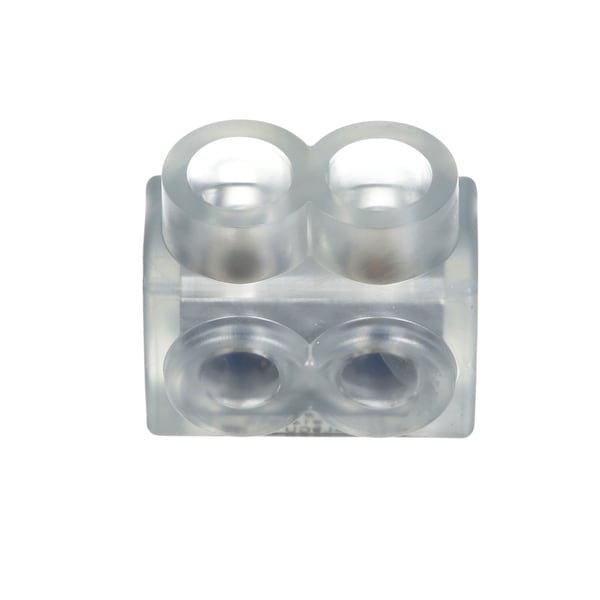

Panduit Mechanical Connector, 4-14 AWG PCSB4-2S-12Y - main

Mechanical Connector, 4-14 AWG

  • Mfr # PCSB4-2S-12Y

  • Zoro # G0781711

product price: $15.19
/ea

Key Features

Number of Ports
2
Insulation Material
Clear PVC
Width
1.3"
Length
1.2"
Overall Length
1.23 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PCSB4-2S-12Y
Zoro #
G0781711
UPC #
7498359755
Country of Origin
United States

Dimensions

Width
1.3"
Length
1.2"
Overall Length
1.23 in
Height
1.2"
Wire Strip Length (In.)
0.56
Overall Width (mm)
31.8
Maximum Copper Conductor Size (AWG STR)
4
Maximum Copper Conductor Size (AWG)
10
Overall Width (In.)
1.25
Wrench Size (In.)
0.12
Minimum Copper Conductor Size (AWG SOL)
14
Overall Height (mm)
31.7
Minimum Copper Conductor Size (AWG STR)
14
Wire Strip Length (mm)
14.2
Maximum Copper Conductor Size (AWG SOL)
10
Minimum Aluminum Conductor Size (AWG)
14
Overall Length (In.)
1.23
Overall Length (mm)
31.2
Overall Height (In.)
1.25
Hex Size (mm)
3.17
For Wire Size
14-4 AWG

Details

Item
Mechanical Connector,4-14 AWG
Number of Ports
2
Insulation Material
Clear PVC
Application
Aluminum or Copper Code Conductors
Features
Single Sided
UL Temperature Rating (°C)
90
Base Material
Aluminum
Finish/Coating
Tin-Plated
Standards Met
UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
Note
PCSB4-2S-12Y replaces PCSB4-2S-12
Maximum Voltage (V)
600
Product Type
Multi-Tap Mechanical Connectors, Single Sided
Product Name
Pan-Lug Terminal Connector
Product Color
Clear
Product Material
Polyvinyl Chloride (PVC)
Product Line
Pan-Lug
Connector Details
Multi-tap Terminal
Product Class
Mechanical Lugs
Body Material
Aluminum
Standards
UL Listed and CSA Certified
Color
Clear
Head Style
Hex
For Conductor Material
Aluminum or Copper

Description

Mechanical Connector,4-14 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
