Shop PANDUIT

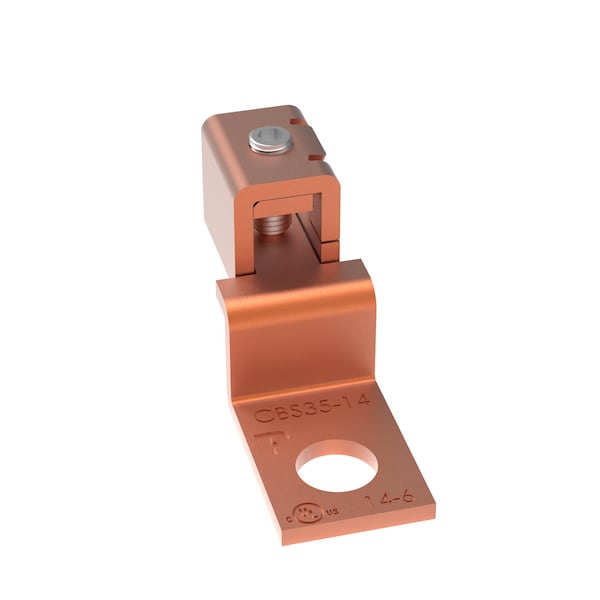

Mechanical Lug, 6 AWG Max, 1 Hole, Copper

  • Mfr # CBS35-14-C

  • Zoro # G804859399

product price:  $3.69
/ea
Sold in multiples of 3 for $11.07

Key Features

For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Number of Holes
1
Hole Diameter
0.06 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CBS35-14-C
Zoro #
G804859399
UPC #
61305626069
Country of Origin
Mexico

Dimensions

For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Hole Diameter
0.06 in
Tongue Width
1/2 in
Wire Size
6
Stud Size
44565
Width
1/2 in
Overall Length
1.43 in
Overall Width
0.5
Height
0.55 in
Overall Height
0.55
Stud Hole Size (mm)
6.4
Minimum Copper Conductor Size (AWG STR)
14
Maximum Copper Conductor Size (AWG STR)
6
Overall Height (In.)
0.55
Overall Length (mm)
36.3
Barrel Length (mm)
11.9
Tongue Thickness (mm)
1.5
Tongue Thickness (In.)
0.06
Barrel Length (In.)
0.47
Overall Height (mm)
14
Overall Width (In.)
0.5
Hex Size (mm)
2
Overall Width (mm)
12.7
Overall Length (In.)
1.43
Tongue Length
1.43 in

Details

Item
Mechanical Lug
For Conductor Material
Copper
Number of Holes
1
Body Material
Copper
Contact Finish
Bare
Maximum Voltage
600 V
Maximum Operating Temperature
90 deg C
Standards
cULus Listed for use up to 600V & Temperature Rated to 90°C
Material of Construction
Copper
Type
Mechanical Connectors-Lugs
No. of Holes
1
Material
Copper
Product Type
Mechanical Connectors - Lug
UL Temperature Rating (°C)
90
Tongue Type
Offset Floating Tongue
Finish/Coating
Bare
Barrel Type
Single Barrel

Description

The CBS35-14-C Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
