Panduit Multi-Tap Connector, Double-Sided, Clear Insulation, 3, PCSB600-3-3Y PCSB600-3-3Y - main

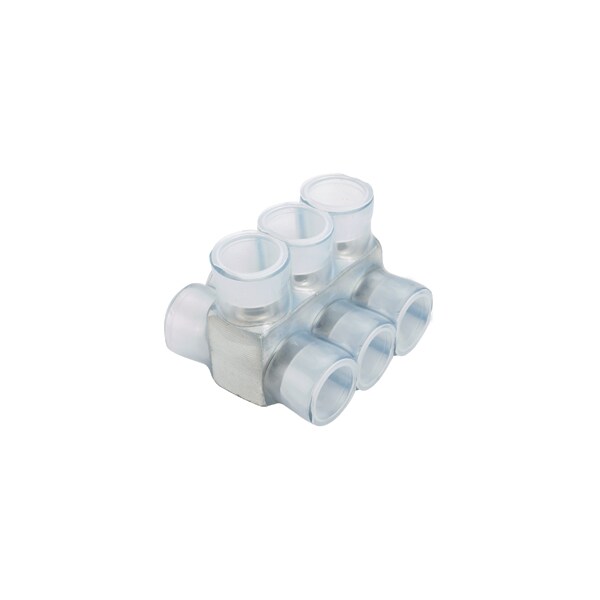

Multi-Tap Connector, Double-Sided, Clear Insulation, 3, PCSB600-3-3Y

  • Mfr # PCSB600-3-3Y

  • Zoro # G2866844

product price:  $77.65
/ea
Free Shipping & Returns

Key Features

Connector Type
Double-Sided
For Wire Size
6 AWG-600 kcmil
Number of Ports
3
For Conductor Material
Copper, Aluminum
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PCSB600-3-3Y
Zoro #
G2866844
UPC #
7498359989
Country of Origin
United States

Dimensions

For Wire Size
6 AWG-600 kcmil
Length
4"
Width
3"
Height
2.8"
Overall Length
4 in
Overall Width (mm)
76.2
Maximum Aluminum Conductor Size (kcmil)
600
Maximum Copper Conductor Size (kcmil)
600
Overall Height (mm)
69.9
Hex Size (mm)
9.53
Overall Length (mm)
101.6
Overall Length (In.)
4
Overall Height (In.)
2.8
Minimum Aluminum Conductor Size (AWG)
6
Minimum Copper Conductor Size (AWG STR)
6
Overall Width (In.)
3

Details

Connector Type
Double-Sided
Number of Ports
3
For Conductor Material
Copper, Aluminum
Body Material
Aluminum
Insulation Material
Clear PVC
Head Style
Hex
Color
Clear
Standards
UL Listed and CSA Certified
Application
Aluminum or Copper Code Conductors
Features
Double Sided
Standards Met
UL Listed and CSA Certified for use up to 600 V
Product Type
Multi-Tap Mechanical Connectors, Double Sided
Note
PCSB600-3-3Y replaces PCSB600-3-3
UL Temperature Rating (°C)
90
Maximum Voltage (V)
600
Base Material
Aluminum
Product Line
Pan-Lug
Product Color
Clear
Connector Details
Multi-tap Terminal
Product Name
Pan-Lug Terminal Connector
Product Material
Polyvinyl Chloride (PVC)
Product Class
Wire Termination

Description

Multi-Tap Connector, Double-Sided, Clear Insulation, 3 Ports, 600 kcmil - #6 AWG STR
