Shop PANDUIT

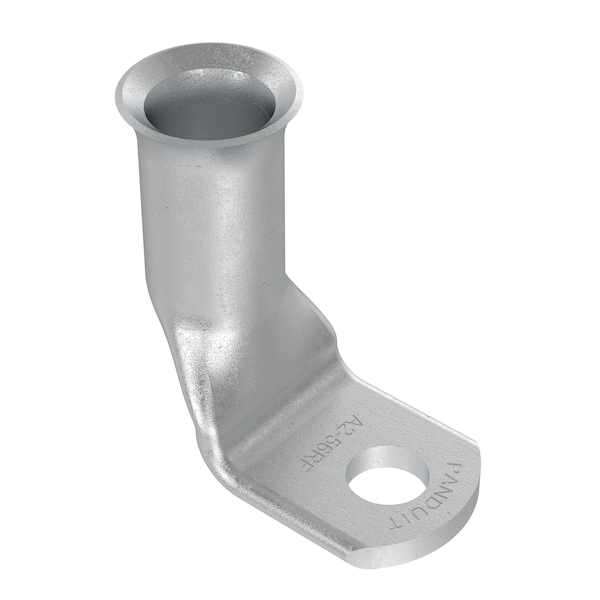

One-Hole Compression Lug, 0.31 in Stud, Standard Barrel, Copper, None, 100 PK

  • Mfr # A2-56RF-C

  • Zoro # G904858520

product price:  $332.99
/pk 100, $3.33/ea
Free Shipping & Returns

Key Features

For Conductor Material
Copper
For Stud Size
0.31 in
Material
Copper
Barrel Size
Standard
Tongue Width
0.66 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A2-56RF-C
Zoro #
G904858520
UPC #
61305679331
Country of Origin
Mexico

Dimensions

For Stud Size
0.31 in
Barrel Size
Standard
Tongue Width
0.66 in
Outside Dia.
0.42
Overall Length
1.26 in
Class K Copper Flex Conductor Size (AWG)
2
Wire Strip Length (In.)
0.75
Stud Hole Size (In.)
0.31
Outer Diameter (In.)
0.42
Overall Length (mm)
32
Stud Hole Size (mm)
7.9
Wire Strip Length (mm)
19.1
Tongue Thickness (mm)
2.5
Outer Diameter (mm)
10.7
Barrel Length (mm)
18.8
Overall Length (In.)
1.26
Inside Diameter (mm)
7.9
Barrel Length (In.)
0.74
Tongue Width (In.)
0.66
Tongue Width (mm)
16.8
Tongue Thickness (In.)
0.1
Inside Diameter (In.)
0.31

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
90 Degrees Angled
Color Code
None
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Hole Center to Center
0.31 in
Tool Type
Copper Compression Lug
UL Temperature Rating (°C)
90
Product Type
Copper Compression Lug
Base Material
Copper
Finish/Coating
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Maximum Voltage (kV)
35
Tongue Type
Round
Lug Type
1 Stud Hole Lug

Description

The A2-56RF-C Copper Compression Battery Cable Lug, 2/0 AWG, 1/2" Stud with a 90 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
