  6. One-Hole Compression Lug, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK

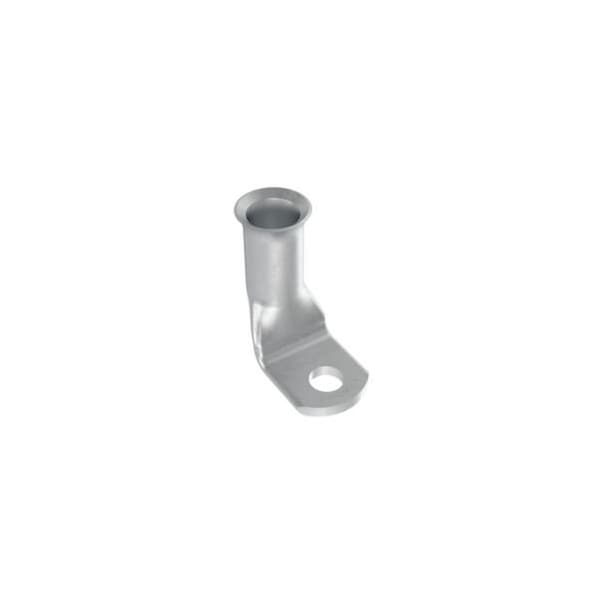

Panduit One-Hole Compression Lug, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK A4/0-38RF-C - main

One-Hole Compression Lug, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK

  • Mfr # A4/0-38RF-C

  • Zoro # G304859080

product price:  $866.99
/pk 100, $8.67/ea
Free Shipping & Returns

Key Features

For Conductor Material
Copper
For Stud Size
0.38 in
Material
Copper
Barrel Size
Standard
Tongue Width
1.02 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A4/0-38RF-C
Zoro #
G304859080
UPC #
61305679315
Country of Origin
Mexico

Dimensions

For Stud Size
0.38 in
Barrel Size
Standard
Tongue Width
1.02 in
Barrel Length
0.91
Overall Length
1.65 in
Outside Dia.
0.69
Tongue Thickness (In.)
0.12
Inside Diameter (In.)
0.56
Tongue Thickness (mm)
3
Overall Length (mm)
41.9
Class K Copper Flex Conductor Size (AWG)
36617
Tongue Width (mm)
25.9
Outer Diameter (mm)
17.5
Inside Diameter (mm)
14.2
Wire Strip Length (In.)
0.94
Stud Hole Size (mm)
9.5
Wire Strip Length (mm)
23.8
Tongue Width (In.)
1.02
Barrel Length (In.)
0.91
Stud Hole Size (In.)
0.38
Barrel Length (mm)
23.1
Outer Diameter (In.)
0.69
Overall Length (In.)
1.65

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
90 Degrees Angled
Color Code
None
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Hole Center to Center
0.38 in
Tool Type
Copper Compression Lug
Standards Met
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
UL Temperature Rating (°C)
90
Maximum Voltage (kV)
35
Lug Type
1 Stud Hole Lug
Tongue Type
Round
Base Material
Copper
Product Type
Copper Compression Lug
Finish/Coating
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)

Description

The A4/0-38RF-C Copper Compression Battery Cable Lug, 4/0 AWG, 3/8" Stud with a 90 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
