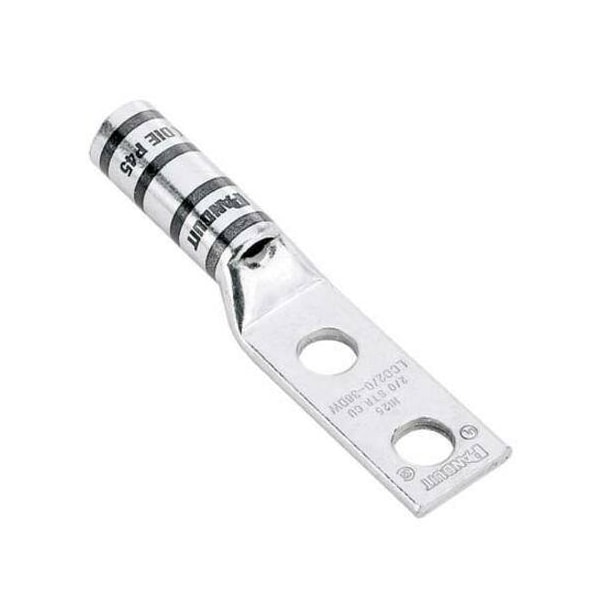

One-Hole Compression Lug, 1 AWG Max, 1 to 2 in Stud, Long Barrel, Copper, Green
- Mfr # LCC1-12W-E
- Zoro # G0775341
product price:Â
$
13.55
/ea
Key Features
For Wire Size
1 AWG
For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCC1-12W-E
- Zoro #
- G0775341
- UPC #
- 7498379799
- Country of Origin
- Mexico
- Item
- One-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Die Code
- 11
- Color Code
- Green
- Connector Type
- Long Barrel
- Connection Material
- Tin
- Connection Type
- 1 x Terminal
- Features
- Corrosion Resistant
- Product Type
- Copper Compression Connectors - Lugs
- Base Material
- Copper
- Maximum Voltage (kV)
- 35
- Burndy Die Index Number
- 11
- Finish/Coating
- Tin-Plated
- UL Temperature Rating (°C)
- 90
- Stud Hole Spacing (mm)
- 44.5
- Panduit Die Index Number
- P37
- Tongue Type
- Standard
- Stud Hole Spacing (In.)
- 1.75
- Product Material
- Copper
- Connector Details
- 1 x Terminal
- Connector Plating
- Tin
- Product Name
- Terminal Connector
- Product Class
- Wire Termination
Dimensions
- For Wire Size
- 1 AWG
- For Stud Size
- 1 to 2 in
- Barrel Size
- Long
- Tongue Width
- 0.75 in
- Width
- 3/4 in
- Cable Size
- 1 AWG
- Length
- 4.63"
- Overall Length
- 4.63 in
- Barrel Length (In.)
- 1.36
- Barrel Length (mm)
- 34.5
- Copper Code Conductor Size (AWG)
- 1
- Tongue Width (mm)
- 19
- Wire Strip Length (mm)
- 36.5
- Overall Length (In.)
- 4.63
- Tongue Thickness (mm)
- 2.3
- Tongue Thickness (In.)
- 0.09
- Wire Strip Length (In.)
- 1.44
- Overall Length (mm)
- 117.6
- Tongue Width (In.)
- 0.75
- Stud Hole Size (In.)
- 1 to 2
- Stud Hole Size (mm)
- 12.7
Description
Lug Compression Connector,No.1 AWG
