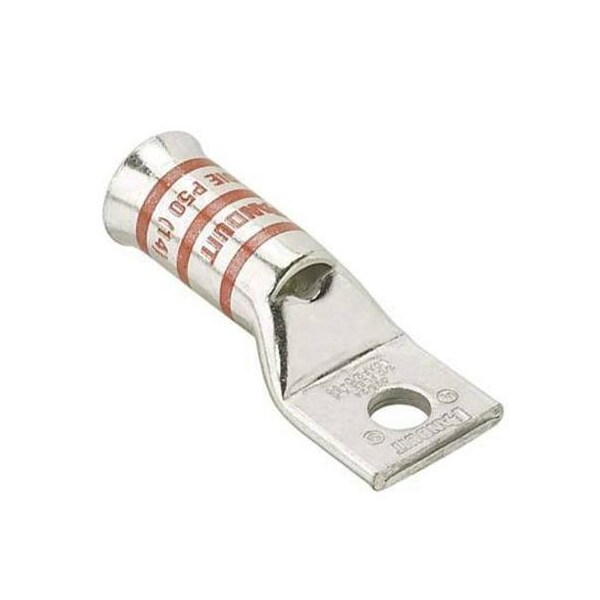

One-Hole Compression Lug, 1 AWG Max, Standard Barrel, Copper, Pink
Mfr # LCAF1-56-X
Zoro # G0772322
product price: $7.85
/eaKey Features
For Wire Size
1 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.76 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
LCAF1-56-X
Zoro #
G0772322
UPC #
7498355750
Country of Origin
Mexico
Dimensions
For Wire Size
1 AWG
Barrel Size
Standard
Tongue Width
0.76 in
Width
0.76"
Length
2"
Cable Size
1 AWG
Overall Length
2 in
Tongue Thickness (In.)
0.12
Wire Strip Length (In.)
1
Class M Copper Flex Conductor Size (AWG)
1
Wire Strip Length (mm)
25.4
DLO Copper Flex Conductor Size (AWG)
1
Class K Copper Flex Conductor Size (AWG)
1
Overall Length (mm)
50.8
Tongue Thickness (mm)
3
Barrel Length (mm)
23.9
Stud Hole Size (mm)
7.9
Overall Length (In.)
2
Tongue Width (mm)
19.3
Stud Hole Size (In.)
45062
Barrel Length (In.)
0.94
Tongue Width (In.)
0.76
Description
Lug Compression Connector,No.1 AWG
