  11. One-Hole Compression Lug, 1 to 2 in Stud, Long Barrel, Copper, Orange

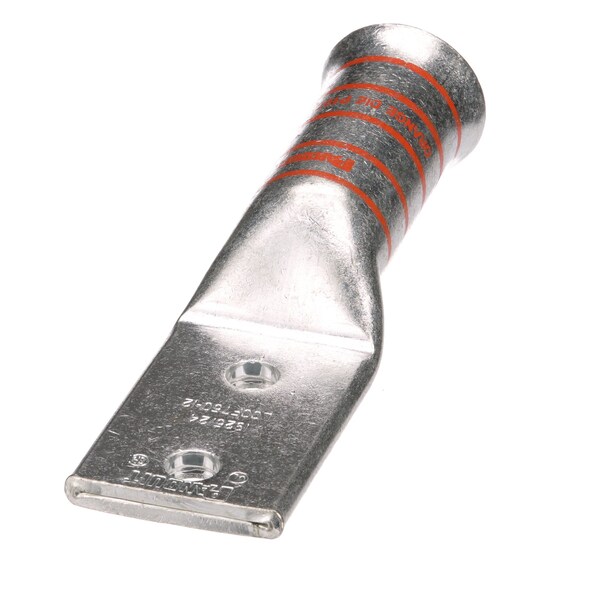

Panduit One-Hole Compression Lug, 1 to 2 in Stud, Long Barrel, Copper, Orange LCCF750-12-3 - main

One-Hole Compression Lug, 1 to 2 in Stud, Long Barrel, Copper, Orange

  • Mfr # LCCF750-12-3

  • Zoro # G2800895

product price: $171.99
/ea
Free Shipping & Returns

Key Features

For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Long
Tongue Width
2.17 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCCF750-12-3
Zoro #
G2800895
UPC #
7498375322
Country of Origin
Mexico

Dimensions

For Stud Size
1 to 2 in
Barrel Size
Long
Tongue Width
2.17 in
Overall Length
7.29 in
Wire Strip Length (mm)
77.8
Overall Length (mm)
185.2
Wire Strip Length (In.)
3.0625
Tongue Thickness (mm)
8.1
Tongue Width (mm)
55.1
Tongue Width (In.)
2.17
Barrel Length (mm)
76.2
Stud Hole Size (mm)
12.7
Tongue Thickness (In.)
0.32
Overall Length (In.)
7.29
DLO Copper Flex Conductor Size (kcmil)
777.7
Barrel Length (In.)
3
Stud Hole Size (In.)
1 to 2

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Color Code
Orange
Standards
CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
Features
Corrosion Resistant, Flared Barrel
Product Type
Compression Connectors - Lugs
Base Material
Copper
Tongue Type
Standard
Panduit Die Index Number
P107
Finish/Coating
Tin-Plated
Stud Hole Spacing (mm)
44.5
UL Temperature Rating (°C)
90
Maximum Voltage (kV)
35
Stud Hole Spacing (In.)
1.75
Product Name
Terminal Connector
Product Material
Copper
Connector Details
1 x Terminal
Connector Plating
Tin
Product Class
Lugs, Splices, Split Bolts & Accessories
Number of Holes
1

Description

Copper Compression Lug, 2 Hole, 750 kcmil, Flared Barrel, 1/2 (12.7mm) Stud
