  11. One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink

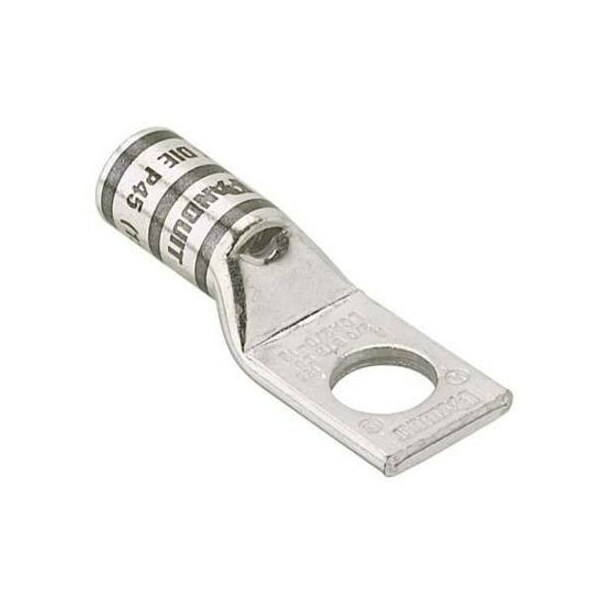

Panduit One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink LCA1/0-56-X - main

One-Hole Compression Lug, 1/0 AWG Max, Standard Barrel, Copper, Pink

  • Mfr # LCA1/0-56-X

  • Zoro # G0771351

product price: $7.69
/ea

Key Features

Cable Size
1/0 AWG
Connector Type
Standard Barrel
Width
0.76"
Material
Copper
Length
2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA1/0-56-X
Zoro #
G0771351
UPC #
7498390025
Country of Origin
Mexico

Dimensions

Cable Size
1/0 AWG
Width
0.76"
Length
2"
Overall Length
2 in
Inside Diameter (mm)
9.9
Tongue Width (In.)
0.76
Barrel Length (mm)
23.9
Stud Hole Size (mm)
7.9
Tongue Width (mm)
19.3
Copper Code Conductor Size (AWG)
36526
Wire Strip Length (mm)
25.4
Overall Length (In.)
2
Outer Diameter (In.)
0.52
Tongue Thickness (mm)
3
Wire Strip Length (In.)
1
Inside Diameter (In.)
0.39
Tongue Thickness (In.)
0.12
Outer Diameter (mm)
0.2
Barrel Length (In.)
0.94
Stud Hole Size (In.)
45062
Overall Length (mm)
50.8
Barrel Size
Standard
Tongue Width
0.76 in
For Wire Size
1/0 AWG

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Pink
Item
One-Hole Compression Lug
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Die Code
12
Connection Type
1 x Terminal
Connection Material
Tin
Features
Angled Connector, Corrosion Resistant
Burndy Die Index Number
12
Finish/Coating
Tin-Plated
T & B Die Index Number
12
Maximum Voltage (kV)
35
Base Material
Copper
Panduit Die Index Number
P42
Product Type
Copper Compression Connectors - Lugs
Lug Type
1 Stud Hole Lug
UL Temperature Rating (°C)
90
Tongue Angle
Straight
Tongue Type
Standard
Product Name
Terminal Connector
Connector Details
1 x Terminal
Connector Plating
Tin
Product Material
Copper
Product Class
Lugs, Splices, Split Bolts & Accessories
For Conductor Material
Copper

Description

Lug Compression Connector,1/0 AWG

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
