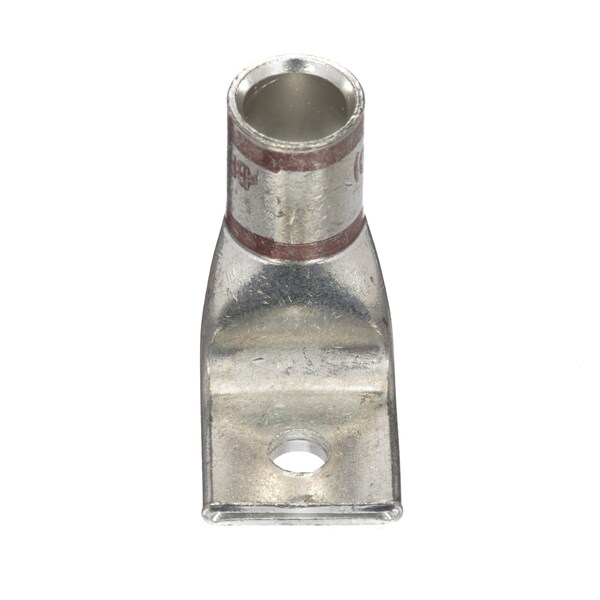

One-Hole Compression Lug, 2 AWG Max, 0.19 in Stud, Standard Barrel, Copper, Brown
- Mfr # LCAX2-10F-E
- Zoro # G904859480
product price:
$
10.79
/ea
Key Features
For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
0.19 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCAX2-10F-E
- Zoro #
- G904859480
- UPC #
- 7498344747
- Country of Origin
- Mexico
- Item
- One-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Tongue Angle
- 90 Degrees Angled
- Die Code
- 10
- Color Code
- Brown
- Tongue Style
- Standard
- Tool Type
- Tin-Plated Copper Compression Connectors - Lugs
- Hole Center to Center
- 0.19 in
- Finish/Coating
- Tin-Plated
- Panduit Die Index Number
- P33
- Base Material
- Copper
- Maximum Voltage (kV)
- 35
- Product Type
- Copper Compression Connectors - Lugs
- Burndy Die Index Number
- 10
- Tongue Type
- Standard
- UL Temperature Rating (°C)
- 90
- Product Class
- Wire Termination
- Number of Holes
- 1
Dimensions
- For Wire Size
- 2 AWG
- For Stud Size
- 0.19 in
- Barrel Size
- Standard
- Tongue Width
- 0.70 in
- Overall Length
- 1.21 in
- Tongue Width - Wire Connector
- 0.7
- Barrel Length
- 0.59
- Barrel Length (In.)
- 0.59
- Tongue Width (In.)
- 0.7
- Tongue Thickness (mm)
- 2.8
- Stud Hole Size (mm)
- 4.8
- Tongue Width (mm)
- 17.8
- Stud Hole Size (In.)
- 0.19
- Copper Code Conductor Size (AWG)
- 2
- Barrel Length (mm)
- 15
- Overall Length (mm)
- 30.7
- Overall Length (In.)
- 1.21
- Tongue Thickness (In.)
- 0.11
- Wire Strip Length (mm)
- 17.5
Description
One-hole, flex lug, #2 AWG wire, #10 stud hole., 90° angle tongue.
