  11. One-Hole Compression Lug, 2 AWG Max, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK

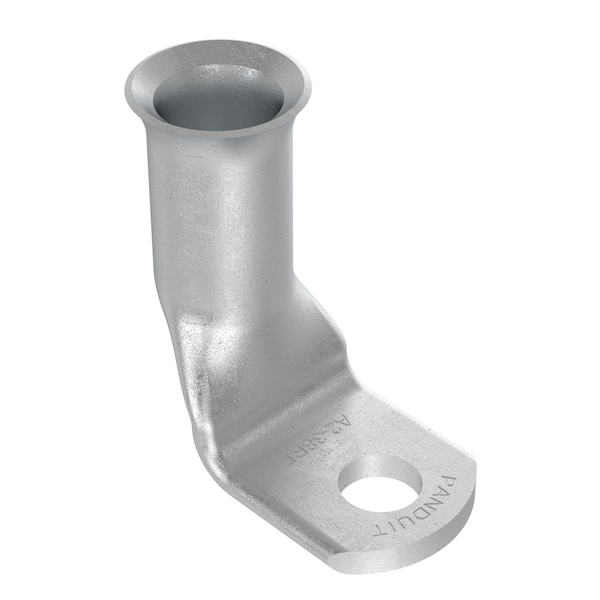

Panduit One-Hole Compression Lug, 2 AWG Max, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK A2-38RF-C - main

One-Hole Compression Lug, 2 AWG Max, 0.38 in Stud, Standard Barrel, Copper, None, 100 PK

  • Mfr # A2-38RF-C

  • Zoro # G904858575

product price: $346.99
/pk 100, $3.47/ea
Free Shipping & Returns

Key Features

Material
Copper
Color Code
None
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Overall Length
1.26 in
Barrel Length
0.74
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A2-38RF-C
Zoro #
G904858575
UPC #
61305679311
Country of Origin
Mexico

Dimensions

Overall Length
1.26 in
Barrel Length
0.74
Outside Dia.
0.42
Inside Diameter (In.)
0.31
Tongue Thickness (mm)
2.5
Outer Diameter (In.)
0.42
Tongue Width (In.)
0.66
Outer Diameter (mm)
10.7
Inside Diameter (mm)
7.9
Overall Length (In.)
1.26
Barrel Length (In.)
0.74
Overall Length (mm)
32
Tongue Width (mm)
16.8
Class K Copper Flex Conductor Size (AWG)
2
Stud Hole Size (In.)
0.38
Stud Hole Size (mm)
9.5
Wire Strip Length (In.)
0.75
Barrel Length (mm)
18.8
Wire Strip Length (mm)
19.1
Tongue Thickness (In.)
0.1
For Stud Size
0.38 in
Barrel Size
Standard
For Wire Size
2 AWG
Tongue Width
0.66 in

Description

The A2-38RF-C Copper Compression Battery Cable Lug, 1/0 AWG, 3/8" Stud with a 90 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
