  11. One-Hole Compression Lug, 350 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Red

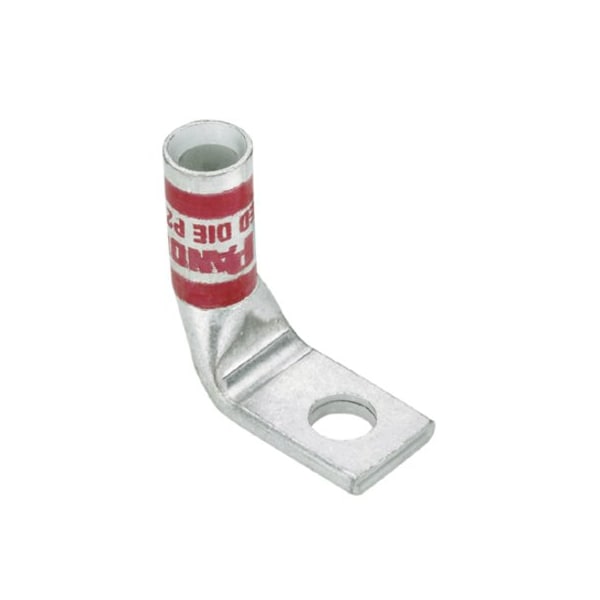

Panduit One-Hole Compression Lug, 350 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Red LCA350-12F-X - main

One-Hole Compression Lug, 350 kcmil Max, 1 to 2 in Stud, Standard Barrel, Copper, Red

  • Mfr # LCA350-12F-X

  • Zoro # G0771631

product price: $24.59
/ea

Key Features

Cable Size
350 kcmil
Connector Type
Standard Barrel
Width
1.28"
Material
Copper
Length
2.24"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCA350-12F-X
Zoro #
G0771631
UPC #
7498386969
Country of Origin
Mexico

Dimensions

Cable Size
350 kcmil
Width
1.28"
Length
2.24"
Overall Length
2.24 in
Tongue Width (mm)
32.5
Tongue Width (In.)
1.28
Overall Length (In.)
2.24
Copper Code Conductor Size (kcmil)
350
Wire Strip Length (In.)
1.5
Tongue Thickness (In.)
0.17
Wire Strip Length (mm)
38.1
Barrel Length (In.)
1.44
Tongue Thickness (mm)
4.3
Overall Length (mm)
56.9
Stud Hole Size (mm)
12.7
Barrel Length (mm)
36.6
Stud Hole Size (In.)
1 to 2
For Wire Size
350 kcmil
Tongue Width
1.28 in
Barrel Size
Standard
For Stud Size
1 to 2 in

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Red
Item
One-Hole Compression Lug
Die Code
18
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connection Type
1 x Terminal
Connection Material
Tin
Features
90° Angled Connector, Corrosion Resistant
Product Type
Copper Compression Connectors - Lugs
Finish/Coating
Tin-Plated
Tongue Angle
90 Degrees Angled
Base Material
Copper
Burndy Die Index Number
18
Tongue Type
Standard
Panduit Die Index Number
P71
Maximum Voltage (kV)
35
UL Temperature Rating (°C)
90
Product Name
Terminal Connector
Connector Details
1 x Terminal
Connector Plating
Tin
Product Material
Copper
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,350 Kcmil
