  6. One-Hole Compression Lug, 4/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Purple

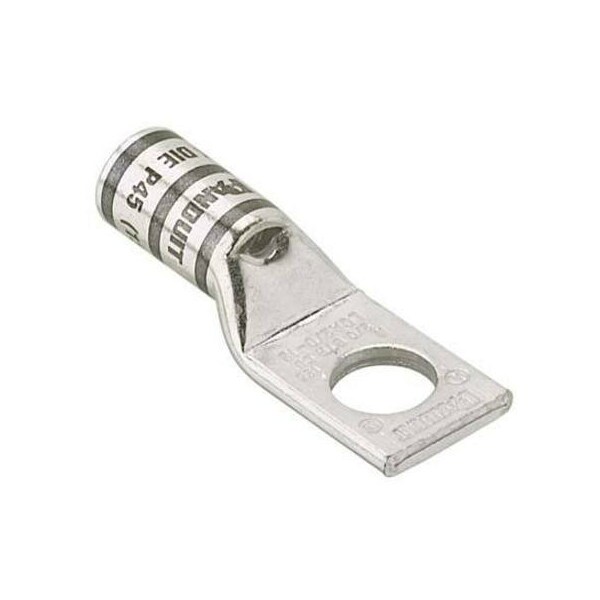

Panduit One-Hole Compression Lug, 4/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Purple LCA4/0-12-X - main

One-Hole Compression Lug, 4/0 AWG Max, 1 to 2 in Stud, Standard Barrel, Copper, Purple

  • Mfr # LCA4/0-12-X

  • Zoro # G0771677

product price:  $12.25
/ea

Key Features

For Wire Size
4/0 AWG
For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCA4/0-12-X
Zoro #
G0771677
UPC #
7498390041
Country of Origin
Mexico

Dimensions

For Wire Size
4/0 AWG
For Stud Size
1 to 2 in
Barrel Size
Standard
Tongue Width
1.06 in
Length
2.68 in
Cable Size
4/0 AWG
Width
1.06 in
Overall Length
2.68 in
Outer Diameter (mm)
18.03
Outer Diameter (In.)
0.71
Inside Diameter (mm)
14.47
Tongue Thickness (mm)
3.6
Barrel Length (In.)
1.19
Tongue Thickness (In.)
0.14
Wire Strip Length (In.)
37987
Tongue Width (In.)
1.06
Stud Hole Size (mm)
12.7
Overall Length (In.)
2.68
Inside Diameter (In.)
0.57
Barrel Length (mm)
30.2
Overall Length (mm)
68.1
Tongue Width (mm)
26.9
Copper Code Conductor Size (AWG)
36617
Wire Strip Length (mm)
31.8
Stud Hole Size (In.)
1 to 2

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Die Code
15
Color Code
Purple
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connector Type
Standard Barrel
Connection Material
Tin
Connection Type
1 x Terminal
Features
Angled Connector, Corrosion Resistant
Base Material
Copper
Finish/Coating
Tin-Plated
Tongue Type
Standard
T & B Die Index Number
15
Burndy Die Index Number
15
Product Type
Copper Compression Connectors - Lugs
Lug Type
1 Stud Hole Lug
Panduit Die Index Number
P54
UL Temperature Rating (°C)
90
Maximum Voltage (kV)
35
Product Name
Terminal Connector
Connector Details
1 x Terminal
Product Material
Copper
Connector Plating
Tin
Product Class
Lugs, Splices, Split Bolts & Accessories

Description

Lug Compression Connector,4/0 AWG
