  11. One-Hole Compression Lug, 6 AWG Max, Long Barrel, Copper, Blue

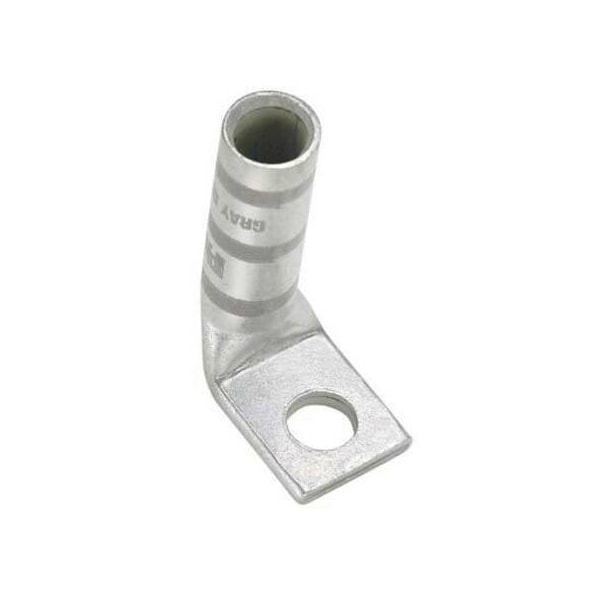

Panduit One-Hole Compression Lug, 6 AWG Max, Long Barrel, Copper, Blue LCB6-14F-L - main

One-Hole Compression Lug, 6 AWG Max, Long Barrel, Copper, Blue

  • Mfr # LCB6-14F-L

  • Zoro # G0774781

product price: $3.89
/ea
Sold in multiples of 2 for $7.78

Key Features

Cable Size
6 AWG
Connector Type
Long Barrel
Width
0.48"
Material
Copper
Length
1.03"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCB6-14F-L
Zoro #
G0774781
UPC #
7498387148
Country of Origin
Mexico

Dimensions

Cable Size
6 AWG
Width
0.48"
Length
1.03"
Overall Length
1.03 in
Tongue Width (In.)
0.48
Tongue Thickness (mm)
2
Copper Code Conductor Size (AWG)
6
Overall Length (In.)
1.03
Tongue Thickness (In.)
0.08
Overall Length (mm)
37.6
Wire Strip Length (In.)
1.13
Tongue Width (mm)
12.2
Barrel Length (In.)
1.07
Wire Strip Length (mm)
28.6
Barrel Length (mm)
27.2
Stud Hole Size (In.)
44930
Stud Hole Size (mm)
6.4
Barrel Size
Long
For Wire Size
6 AWG
Tongue Width
0.48 in

Details

Connector Type
Long Barrel
Material
Copper
Color Code
Blue
Item
One-Hole Compression Lug
Die Code
7
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connection Type
1 x Terminal
Connection Material
Tin
Features
90° Angled Connector, Corrosion Resistant
Tongue Type
Standard
Maximum Voltage (kV)
35
UL Temperature Rating (°C)
90
Finish/Coating
Tin-Plated
Panduit Die Index Number
P24
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
7
Base Material
Copper
Tongue Angle
90 Degrees Angled
Connector Details
1 x Terminal
Product Name
Terminal Connector
Connector Plating
Tin
Product Material
Copper
Product Class
Wire Termination
For Conductor Material
Copper

Description

Lug Compression Connector,No.6 AWG
