One-Hole Compression Lug, 6 AWG Max, Long Barrel, Copper, Blue
- Mfr # LCC6-10AWF-L
- Zoro # G204858985
product price:
$
13.79
/ea
Key Features
For Wire Size
6 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Long
Tongue Width
0.46 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCC6-10AWF-L
- Zoro #
- G204858985
- UPC #
- 7498380578
- Country of Origin
- Mexico
- Item
- One-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Die Code
- 7
- Color Code
- Blue
- Tool Type
- Tin-Plated Copper Compression Connectors - Lugs
- Hole Center to Center
- 0.19 in
- Tongue Style
- Standard
- Stud Hole Spacing (mm)
- 16
- Stud Hole Spacing (In.)
- 0.63
- Panduit Die Index Number
- P24
- Maximum Voltage (kV)
- 35
- UL Temperature Rating (°C)
- 90
- Tongue Type
- Standard
- Base Material
- Copper
- Product Type
- Copper Compression Connectors - Lugs
- Burndy Die Index Number
- 7
- Finish/Coating
- Tin-Plated
- Product Class
- Wire Termination
Dimensions
- For Wire Size
- 6 AWG
- Barrel Size
- Long
- Tongue Width
- 0.46 in
- Overall Length
- 1.57 in
- Tongue Width - Wire Connector
- 0.46
- Barrel Length
- 1.07
- Tongue Width (In.)
- 0.46
- Copper Code Conductor Size (AWG)
- 6
- Stud Hole Size (In.)
- 0.19
- Tongue Width (mm)
- 11.7
- Wire Strip Length (mm)
- 28.6
- Overall Length (In.)
- 1.57
- Wire Strip Length (In.)
- 1.13
- Stud Hole Size (mm)
- 4.8
- Tongue Thickness (mm)
- 2
- Tongue Thickness (In.)
- 0.08
- Overall Length (mm)
- 39.9
- Barrel Length (mm)
- 27.2
- Barrel Length (In.)
- 1.07
Description

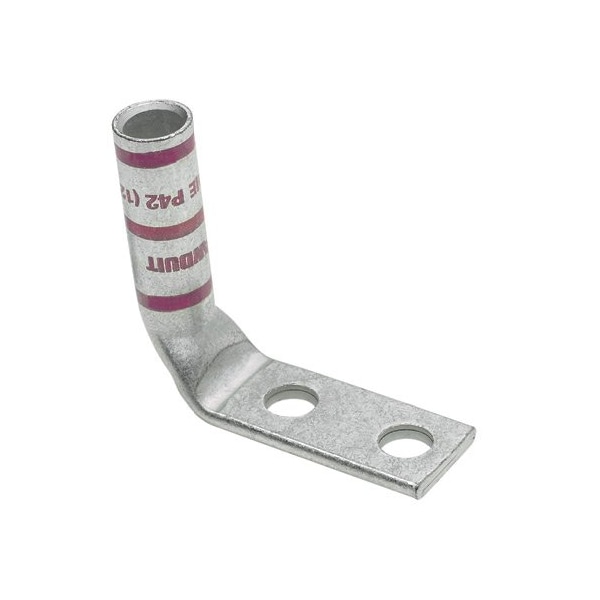

Two-hole, long barrel lug with window, #6 AWG wire, #10 stud hole, .63 hole spacing, 90° angle tongue.
