Shop PANDUIT

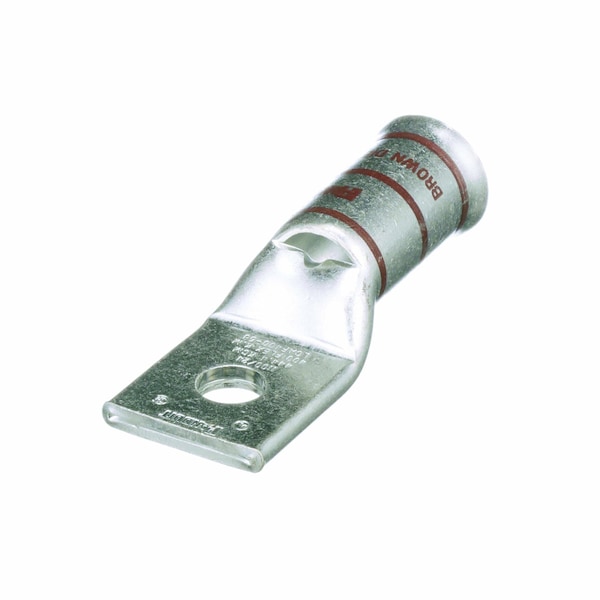

One-Hole Compression Lug, Standard Barrel, Copper, Brown

  • Mfr # LCAF400-58-6

  • Zoro # G2776867

product price:  $51.39
/ea

Key Features

For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
1.70 in
Tongue Angle
Straight
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LCAF400-58-6
Zoro #
G2776867
UPC #
7498355670
Country of Origin
Mexico

Dimensions

Barrel Size
Standard
Tongue Width
1.70 in
Overall Length
4.65 in
Length
3.1"
Stud Hole Size (In.)
45054
Barrel Length (mm)
55.9
Barrel Length (In.)
2.2
Wire Strip Length (mm)
57.2
Class K Copper Flex Conductor Size (kcmil)
400
Tongue Thickness (In.)
0.26
Tongue Thickness (mm)
6.6
Wire Strip Length (In.)
2.25
Stud Hole Size (mm)
15.9
Overall Length (In.)
4.65
Overall Length (mm)
118.1
Class M Copper Flex Conductor Size (kcmil)
400
Tongue Width (In.)
1.7
Tongue Width (mm)
43.2

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Color Code
Brown
Features
Angled Connector, Corrosion Resistant
Panduit Die Index Number
P87
Base Material
Copper
Tongue Type
Standard
Maximum Voltage (kV)
35
Product Type
Copper Compression Connectors - Lugs
Finish/Coating
Tin-Plated
Product Name
Terminal Connector
Connector Plating
Tin
Product Material
Copper
Connector Details
1 x Terminal
Product Class
Wire Termination

Description

Copper Compression Lug, 1 Hole, 400 kcmil, Flared Barrel, 5/8 (15.9mm) Stud
