  11. One-Hole Compression Lug, Standard Barrel, Copper, None, 100 PK
Panduit One-Hole Compression Lug, Standard Barrel, Copper, None, 100 PK A2-38R-C - main

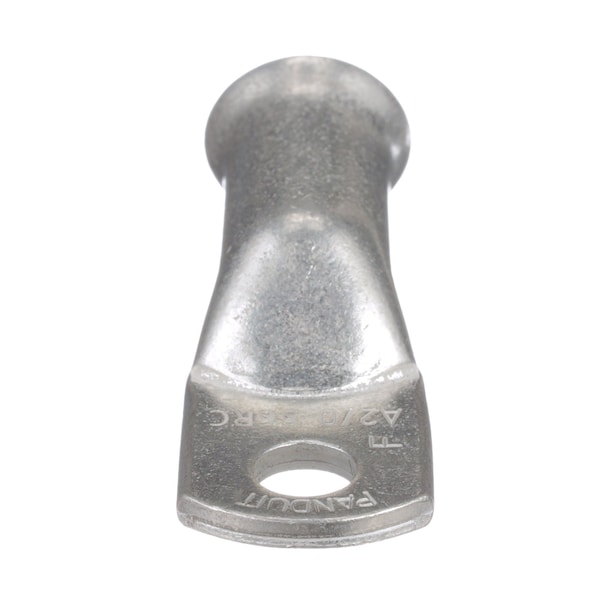

One-Hole Compression Lug, Standard Barrel, Copper, None, 100 PK

  • Mfr # A2-38R-C

  • Zoro # G304858625

product price: $241.99
/pk 100, $2.42/ea
Free Shipping & Returns

Key Features

Material
Copper
Color Code
None
Tongue Style
Round
Overall Length
1.93 in
Hole Center to Center
44628
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A2-38R-C
Zoro #
G304858625
UPC #
61305671747
Country of Origin
Mexico

Dimensions

Overall Length
1.93 in
Tongue Width - Wire Connector
0.66
Barrel Length
0.74
Wire Strip Length (mm)
19.1
Overall Length (mm)
49
Stud Hole Size (In.)
44993
Class K Copper Flex Conductor Size (AWG)
2 AWG STR
Wire Strip Length (In.)
44989
Tongue Width (In.)
0.66
Tongue Thickness (mm)
2.54
Barrel Length (mm)
18.8
Barrel Length (In.)
0.74
Overall Length (In.)
1.93
Stud Hole Size (mm)
9.53
Tongue Thickness (In.)
0.1
Tongue Width (mm)
16.8
Barrel Size
Standard
Tongue Width
0.66 in

Details

Material
Copper
Color Code
None
Tongue Style
Round
Hole Center to Center
44628
Tool Type
Lug
Item
One-Hole Compression Lug
Standards
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
Finish
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Maximum Voltage (kV)
35
Lug Type
1 Stud Hole Lug
Tongue Type
Round
Tongue Angle
Straight
Base Material
Copper
Panduit Die Index Number
2
Product Type
Compression Connectors - Lug
Standards Met
UL Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
UL Temperature Rating (°C)
90
Finish/Coating
Tin-Plating Meets ASTM B545-97, Class C 320µ-in (8 µm)
Product Class
Wire Termination
For Conductor Material
Copper

Description

Battery Cable Lug, 2 AWG, 3/8" Stud
