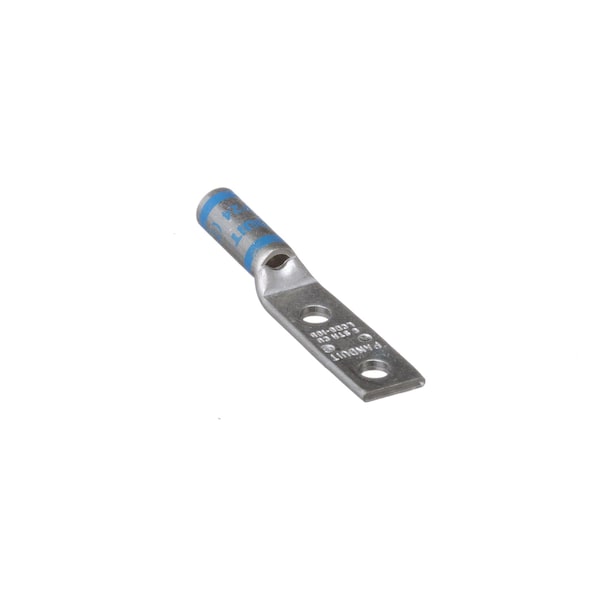

Two-Hole Compression Lug, 6 AWG Max, 0.19 in Stud, Standard Barrel, Copper, Blue
- Mfr # LCD6-10B-L
- Zoro # G804859641
product price:Â
$
7.99
/ea
Key Features
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
0.19 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCD6-10B-L
- Zoro #
- G804859641
- UPC #
- 7498343934
- Country of Origin
- Mexico
- Item
- Two-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Die Code
- 7
- Color Code
- Blue
- Hole Center to Center
- 0.19 in
- Tool Type
- Tin-Plated Copper Compression Connectors - Lugs
- Tongue Style
- Standard
- Burndy Die Index Number
- 7
- Maximum Voltage (kV)
- 35
- Product Type
- Copper Compression Connectors - Lugs
- Panduit Die Index Number
- P24
- Finish/Coating
- Tin-Plated
- Base Material
- Copper
- Tongue Type
- Standard
- UL Temperature Rating (°C)
- 90
- Stud Hole Spacing (mm)
- 19.1
- Stud Hole Spacing (In.)
- 0.75
- Product Class
- Wire Termination
Dimensions
- For Wire Size
- 6 AWG
- For Stud Size
- 0.19 in
- Barrel Size
- Standard
- Tongue Width
- 0.46 in
- Overall Length
- 2.27 in
- Tongue Width - Wire Connector
- 0.46
- Barrel Length
- 0.81
- Stud Hole Size (In.)
- 0.19
- Overall Length (mm)
- 57.7
- Barrel Length (mm)
- 20.6
- Tongue Thickness (In.)
- 0.08
- Copper Code Conductor Size (AWG)
- 6
- Barrel Length (In.)
- 0.81
- Tongue Width (mm)
- 11.7
- Tongue Width (In.)
- 0.46
- Tongue Thickness (mm)
- 2
- Overall Length (In.)
- 2.27
- Wire Strip Length (mm)
- 22.2
- Stud Hole Size (mm)
- 4.8
Description
Two-hole, standard barrel lug with window, #6 AWG wire, #10 stud hole, .75 hole spacing.
