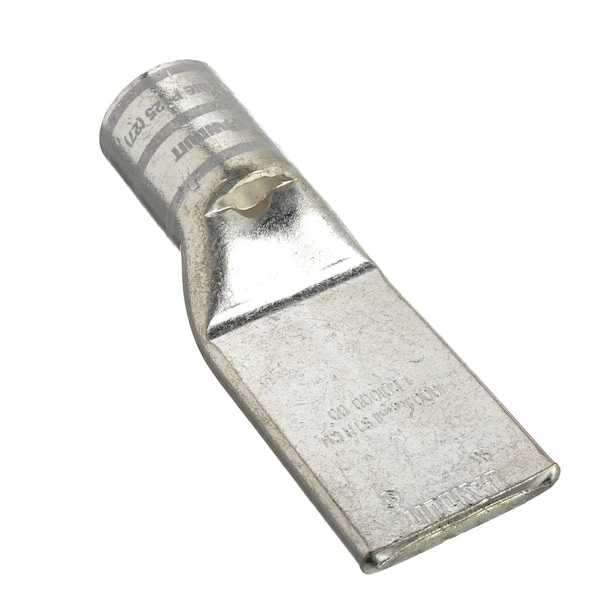

Blank Tongue Compression Lug, Standard Barrel, Copper, White

Mfr # LCD1000-00-3
Zoro # G2772350

123.99

Free Shipping & Returns

Key Features

For Conductor Material

Copper

Material

Copper

Barrel Size

Standard

Tongue Width

2.17 in

Tongue Angle

Straight

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LCD1000-00-3
Zoro #: G2772350
UPC #: 7498390113
Country of Origin: Mexico

Dimensions

Barrel Size: Standard
Tongue Width: 2.17 in
Overall Length: 5.77 in
Inside Diameter (In.): 1.17
Barrel Length (mm): 47.75
Tongue Thickness (mm): 8.12
Outer Diameter (In.): 1.5
Tongue Width (mm): 55.11
Tongue Thickness (In.): 0.32
Overall Length (mm): 146.55
Tongue Width (In.): 2.17
Wire Strip Length (In.): 1.9375
Overall Length (In.): 5.77
Copper Code Conductor Size (kcmil): 1
Barrel Length (In.): 1.88
Inside Diameter (mm): 29.71
Wire Strip Length (mm): 49.21
Outer Diameter (mm): 38.1

Details

Item: Blank Tongue Compression Lug
For Conductor Material: Copper
Material: Copper
Tongue Angle: Straight
Die Code: 27
Color Code: White
Standards: CSA certified, UL Recognized
Features: Corrosion Resistant
Tongue Type: Standard
CSA Temperature Rating (°C): 90
Burndy Die Index Number: 27
Product Type: Copper Compression Lug
Finish/Coating: Tin-Plated
Panduit Die Index Number: P125
UL Temperature Rating (°C): 90
T & B Die Index Number: 27
Base Material: Copper
Maximum Voltage (kV): 35
Product Material: Copper
Product Name: Terminal Connector
Connector Details: 1 x Terminal
Connector Plating: Tin
Product Class: Wire Termination

Description

Copper Compression Lug, Long Blank Tongue, 1000 Kcmil
