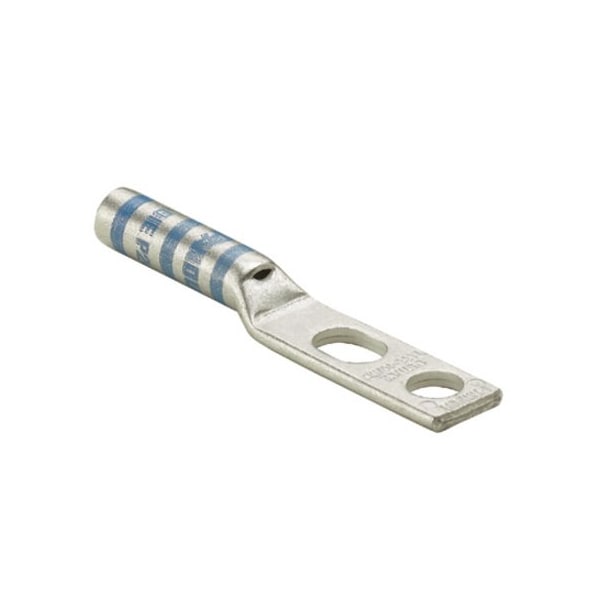

Two-Hole Compression Lug, 6 AWG Max, Long Barrel, Copper, Blue

  • Mfr # LCC6-14JAW-L
  • Zoro # G0776391
product price:
$
13.89
/ea

Key Features

For Wire Size
6 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Long
Tongue Width
0.48 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LCC6-14JAW-L
Zoro #
G0776391
UPC #
074983648337
Country of Origin
Mexico
Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Die Code
7
Color Code
Blue
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connector Type
Long Barrel
Color
Blue
Connection Material
Tin
Maximum Voltage (kV)
35
Panduit Die Index Number
P24
Base Material
Copper
Lug Type
2 Stud Hole Lug
T & B Die Index Number
7
UL Temperature Rating (°C)
90
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
7
Stud Hole Spacing (mm)
16
Stud Hole Spacing (In.)
0.63
Tongue Type
Standard
Finish/Coating
Tin-Plated
Product Name
Code Conductor, Two-Hole, Long Barrel with Window Lug
Product Material
Copper
Product Color
Blue
Connector Plating
Tin
Product Class
Lugs, Splices, Split Bolts & Accessories
Number of Holes
2
Shell Material
Copper
Inspection Hole
Yes
Contact Finish
Tin
Tongue Style
Standard
Termination Style
Crimp
For Wire Type
Stranded
Hole Center to Center
0.63 in
Maximum Voltage
35 kV
Special Features
Color Coded Barrel, Inspection Window, NEBS Level 3, Tin Plated
Traction Material
Copper

Dimensions

For Wire Size
6 AWG
Barrel Size
Long
Tongue Width
0.48 in
Width
0.48 in
Cable Size
6 AWG
Length
2.49"
Overall Length
2.49 in
Inside Diameter (mm)
5.58
Overall Length (In.)
2.49
Wire Strip Length (mm)
28.6
Outer Diameter (mm)
7.87
Tongue Thickness (In.)
0.08
Inside Diameter (In.)
0.22
Barrel Length (mm)
27.2
Tongue Thickness (mm)
2
Barrel Length (In.)
1.07
Tongue Width (In.)
0.48
Copper Code Conductor Size (AWG)
6
Tongue Width (mm)
12.2
Overall Length (mm)
63.2
Outer Diameter (In.)
0.31
Stud Hole Size (mm)
6.4
Stud Hole Size (In.)
44930
Wire Strip Length (In.)
39448
For Stud Size
1/4 in
Strip Length
1 1/8 in
Tongue Thickness
2 mm
For Stranded Copper Wire Size - Maximum
6 AWG

Description

Compression Lug, Barrel Size Long, Color Code Blue, Die Code 24, 7, P24, Tongue Angle Straight, Tongue Width 0.48 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center 0.63 in, Material Copper, Max. Operating Temp. 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA C22.2 No. 65-13, NEBS Level 3, UL 486A-486B, UL File No. E52164, Number of Holes 2, Connector Type Straight Barrel
