Shop PANDUIT

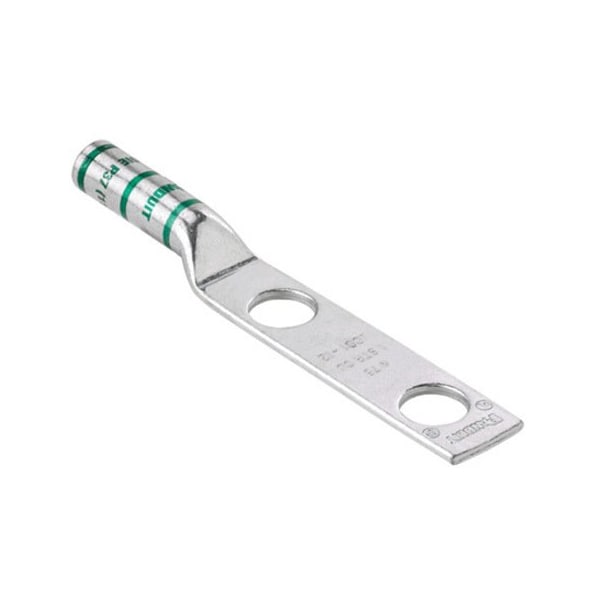

Two-Hole Compression Lug, 600 kcmil Max, 1 to 2 in Stud, Long Barrel, Copper, Green

  • Mfr # LCC600-12-6
  • Zoro # G0413154
product price:
$
58.79
/ea

Key Features

For Wire Size
600 kcmil
For Conductor Material
Copper
For Stud Size
1 to 2 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LCC600-12-6
Zoro #
G0413154
UPC #
074983902767
Country of Origin
Mexico

Dimensions

For Wire Size
600 kcmil
For Stud Size
1 to 2 in
Barrel Size
Long
Tongue Width
1.70 in
Cable Size
600 kcmil
Length
6.63"
Width
1.7"
Overall Length
6.63 in
Tongue Width (mm)
43.2
Tongue Thickness (In.)
0.26
Barrel Length (In.)
2.69
Stud Hole Size (mm)
12.7
Copper Code Conductor Size (kcmil)
600
Stud Hole Size (In.)
1 to 2
Inside Diameter (In.)
0.92
Outer Diameter (mm)
30.22
Wire Strip Length (In.)
38020
Barrel Length (mm)
68.3
Tongue Width (In.)
1.7
Tongue Thickness (mm)
6.6
Inside Diameter (mm)
23.36
Wire Strip Length (mm)
69.9
Overall Length (In.)
6.63
Overall Length (mm)
168.4
Outer Diameter (In.)
1.19
Strip Length
2 3/4 in
Tongue Thickness
6.6 mm
For Stranded Copper Wire Size - Maximum
600 kcmil

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Die Code
22
Color Code
Green
Standards
C22.2 No. 65-13, 486A-486B File #E52164
Connector Type
Long Barrel
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant
T & B Die Index Number
22
Panduit Die Index Number
P94
Finish/Coating
Tin-Plated
Burndy Die Index Number
22
Base Material
Copper
Tongue Type
Standard
Lug Type
2 Stud Hole Lug
Maximum Voltage (kV)
35
Product Type
Copper Compression Connectors - Lugs
Stud Hole Spacing (mm)
44.5
Stud Hole Spacing (In.)
1.75
UL Temperature Rating (°C)
90
Connector Details
1 x Terminal
Connector Plating
Tin
Product Material
Copper
Product Name
Terminal Connector
Product Class
Lugs, Splices, Split Bolts & Accessories
Maximum Voltage
35 kV
Inspection Hole
No
For Wire Type
Stranded
Contact Finish
Tin
Termination Style
Crimp
Tongue Style
Standard
Special Features
Color Coded Barrel, NEBS Level 3, Tin Plated
Hole Center to Center
1.75 in
Shell Material
Copper

Description

Compression Lug, Barrel Size Long, Color Code Green, Die Code 22, 94, P94, Tongue Angle Straight, Tongue Width 1.7 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 600 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Max. Operating Temp. 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA C22.2 No. 65-13, NEBS Level 3, UL 486A-486B, UL File No. E52164, Number of Holes 2
