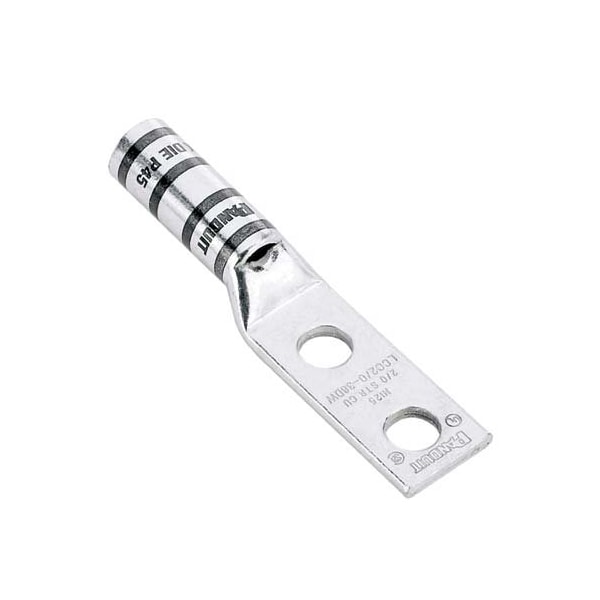

Two-Hole Compression Lug, Long Barrel, Copper, Black
- Mfr # LCC750-38DW-6
- Zoro # G604859605
product price:Â
$
62.59
/ea
Key Features
For Conductor Material
Copper
Material
Copper
Barrel Size
Long
Tongue Width
1.89 in
Die Code
24
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCC750-38DW-6
- Zoro #
- G604859605
- UPC #
- 7498379859
- Country of Origin
- Mexico
- Item
- Two-Hole Compression Lug
- For Conductor Material
- Copper
- Material
- Copper
- Die Code
- 24
- Color Code
- Black
- Tongue Style
- Standard
- Tool Type
- Tin-Plated Copper Compression Connectors - Lugs
- Hole Center to Center
- 44628
- Base Material
- Copper
- UL Temperature Rating (°C)
- 90
- Stud Hole Spacing (In.)
- 1
- Finish/Coating
- Tin-Plated
- Maximum Voltage (kV)
- 35
- Panduit Die Index Number
- P106
- Stud Hole Spacing (mm)
- 25.4
- Product Type
- Copper Compression Connectors - Lugs
- Burndy Die Index Number
- 24
- Tongue Type
- Standard
- Product Class
- Wire Termination
Dimensions
- Barrel Size
- Long
- Tongue Width
- 1.89 in
- Overall Length
- 5.71 in
- Tongue Width - Wire Connector
- 1.89
- Barrel Length
- 2.88
- Copper Code Conductor Size (kcmil)
- 750
- Barrel Length (mm)
- 73.2
- Wire Strip Length (In.)
- 2.94
- Overall Length (mm)
- 145
- Tongue Width (In.)
- 1.89
- Tongue Thickness (In.)
- 0.26
- Wire Strip Length (mm)
- 74.6
- Stud Hole Size (In.)
- 44993
- Tongue Thickness (mm)
- 6.6
- Stud Hole Size (mm)
- 9.5
- Overall Length (In.)
- 5.71
- Barrel Length (In.)
- 2.88
- Tongue Width (mm)
- 48
Description
Two-hole, long barrel lug with window, 750 kcmil, 3/8 stud hole, 1 hole spacing.
