Parker

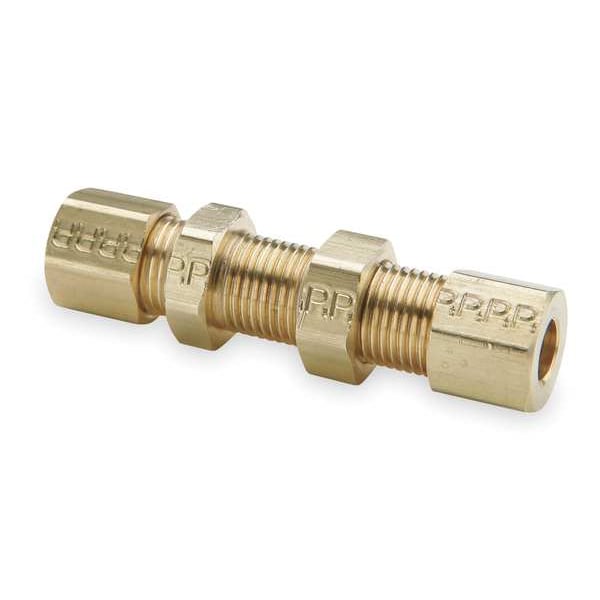

1/4" Compression Brass Bulkhead Union 10PK

product price: $90.99
/pk 10, $9.10/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Brass
  • Specific Fitting Shape Straight Bulkhead Union
  • Fitting Connection Type Compression
  • Tube Size 1/4 in
  • Basic Pipe Fitting Material Metal
See all product information

Product Information

Dimensions

Tube Size 1/4 in
Hex Size 9/16 in
Compression Thread Size 7/16-24
Thread Size A 7/16-24
Overall Length 2 9/32 in
Fitting Side B Tube Outer Diameter 1/4 in
Fitting Side A Tube Outer Diameter 1/4 in
Thread Size B 7/16-24
Thread Size 7/16-24
Length 2.29"
Outside Dia. .188"

Details

Item Bulkhead Union
Tube Fitting Material Brass
Specific Fitting Shape Straight Bulkhead Union
Fitting Connection Type Compression
Basic Pipe Fitting Material Metal
Pipe Fitting Connection Type Compression
Max. Pressure 75 to 400 psi
Temp. Range -65 Degrees to 250 Degrees F
Basic Pipe Fitting Shape Union
Specific Pipe Fitting Shape Bulkhead Union
Fitting Side B Connection Type Compression
Series Compression
Compatible Tube Material Aluminum, Copper, Thermoplastic
Fitting Material Brass
Maximum Operating Pressure 1,400 psi
Minimum Operating Temperature 65 Degrees F
Standards SAE J512, UL
Maximum Operating Temperature 200 Degrees F
System of Measurement Imperial
Application Air, Inert Gases, Non-Combustible Gases, Potable Water
Fitting Side A Connection Type Compression
Type Compression
Connection Tube
Pressure (PSI) 75 to 400

Description

Bulkhead Union, Application Air, Inert Gases, Non-Combustible Gases, Potable Water, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Brass, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Maximum Operating Pressure 1,400 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 9/32 in, Specific Fitting Shape Straight Bulkhead Union, Thread Size A 7/16-24, Thread Size B 7/16-24
