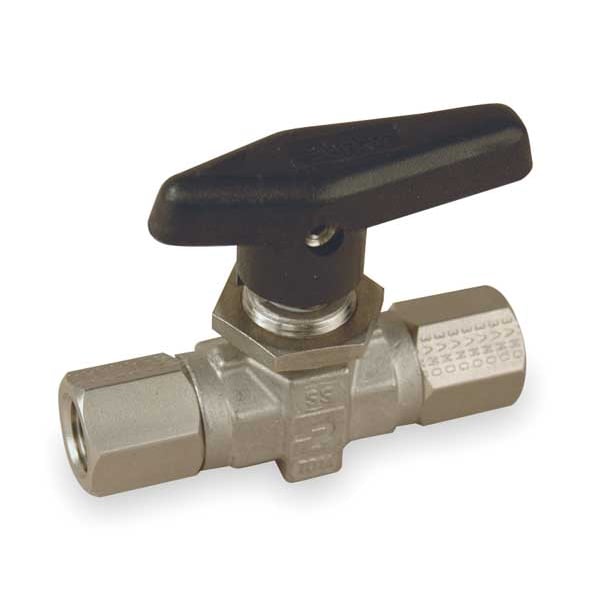

1/4" FNPT Stainless Steel Ball Valve Inline

  • Mfr # 4F-B6LJ2-SSP

  • Zoro # G3021593


product price:  $211.99
/ea
Free Shipping & Returns

Key Features

Ball Material
316 stainless steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4F-B6LJ2-SSP
Zoro #
G3021593
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4 in
Overall Length
3.02 in
Nominal Valve Size
1/4 in
Handle Length
1.5 in
Connection Size - Side 1
1/4 in
Connection Size - Side 2
1/4 in

Details

Ball Material
316 stainless steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Air, Corrosive Chemicals, Natural Gas, Non-Potable Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Temp. Range
-65 Degrees to 350 Degrees F
Max. Pressure
6,000 PSI CWP
Handle Material
Nylon
Stem Material
316 Stainless Steel
Ball Valve Product Group
Manual
Handle Type
Lever
Body Material
Stainless Steel
Stem Type
Blowout Resistant
Seat Material
PCTFE
Seal Material
PTFE
Type
One Piece
Connection Type - Side 1
NPT
Vacuum Service Rating
Not Rated
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Maximum
450 Degrees F
Handle - Locking
Non-Locking
Vented Ball Valve
Non-Vented
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Color - Valve Handle
Black
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
-65 Degrees F
Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
2.34
Connection Gender - Side 2
Female
Valve Series
B

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Air, Corrosive Chemicals, Natural Gas, Non-Potable Water, Valve Construction Three-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 6,000 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Rated, Ball Material 316 Stainless Steel
