  11. 1/4" MNPT x Push Polypropylene Ball Valve Angle

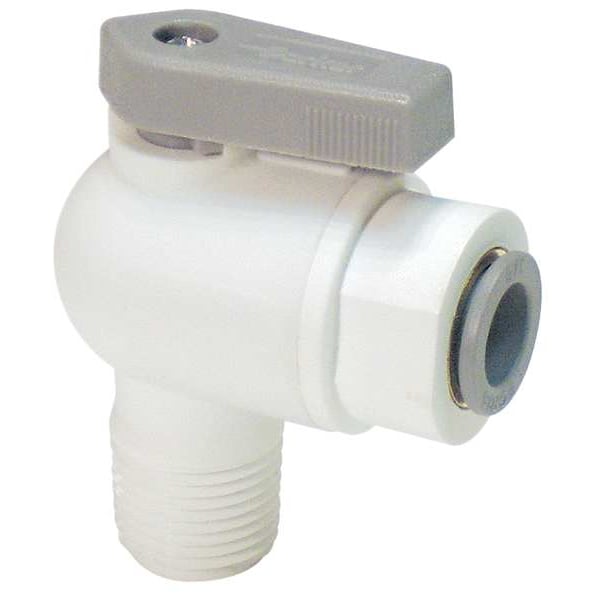

Parker 1/4" MNPT x Push Polypropylene Ball Valve Angle LFPP4VME4 - main

1/4" MNPT x Push Polypropylene Ball Valve Angle

  • Mfr # LFPP4VME4

  • Zoro # G3203207

product price: $11.75
/ea

Key Features

Ball Material
Polysulfone
Body Style
Angle
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LFPP4VME4
Zoro #
G3203207
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4 in
Overall Length
1.74 in
Thread Size
1/4 in
Ball Opening Size
0.19 in
Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in
Connection Size - Side 2
1/4 in
Handle Height
0.9 in

Details

Ball Material
Polysulfone
Body Style
Angle
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Water
Connection Type
MNPT x Push
Item
Ball Valve
Handle Type
Lever
Stem Type
1-Piece Stem
Body Material
Plastic
Seat Material
Nitrile
Max. Pressure
150 PSI CWP
Standards
FDA
Ball Valve Product Group
Manual
Temp. Range
35 Degrees to 200 Degrees F
Features
Self-Cleaning
Handle Material
Nylon
Stem Material
PSU
Seal Material
EPDM
Type
Push In
Connection Type - Side 2
NPT
Handle - Locking
Non-Locking
Operating Temperature - Maximum
200 Degrees F
3-A Standard Compliance
Meets 3A Sanitary Standards
Connection Gender - Side 1
Female
Connection Type - Side 1
Push
Maximum Pressure - Combustible Gas
Not Rated
Vacuum Service Rating
Not Rated
Maximum Pressure - Steam
Not Rated
Connection Gender - Side 2
Male
Color - Valve Handle
Gray
Vented Ball Valve
Non-Vented
Operating Temperature - Minimum
35 Degrees F
NSF Certifications for Food and Drinking Water
NSF 51, NSF 61
Valve Series
VME
Color - Valve Body
White

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Angle, 3-A Standard Compliance Meets 3A Sanitary Standards, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Rated, Ball Material PSU, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
