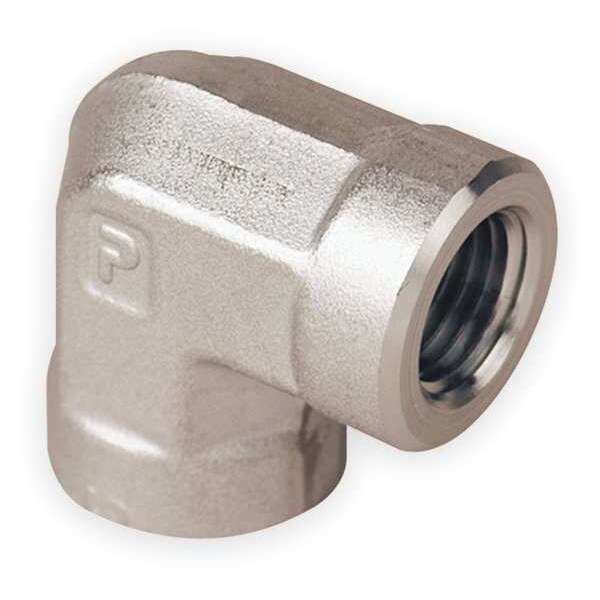

Parker 1/8" FNPT SS 90 Degree Elbow 2-2 FE-SS - main

1/8" FNPT SS 90 Degree Elbow

  • Mfr # 2-2 FE-SS

  • Zoro # G1177522

product price: $39.39
/ea

Key Features

Pipe Size - Pipe Fitting
1/8"
Specific Fitting Shape
90 Degree Elbow
Pipe Fitting Material
Stainless Steel
Fitting Connection Type
FNPT
Basic Pipe Fitting Shape
Elbow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-2 FE-SS
Zoro #
G1177522
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size - Pipe Fitting
1/8"
Hex Size
9/16"
Fitting Length
0.66 in
Pipe Size (Fittings)
1/8"
Pipe Size
1/8"
Pipe Fitting Length
0.66"
Overall Length
1 5/16 in
Fitting Side A Nominal Pipe Size
1/8 in
Fitting Side B Nominal Pipe Size
1/8 in
Thread Size
1/8"

Details

Specific Fitting Shape
90 Degree Elbow
Pipe Fitting Material
Stainless Steel
Fitting Connection Type
FNPT
Basic Pipe Fitting Shape
Elbow
Basic Pipe Fitting Material
Metal
Item
90 Degree Elbow
Temp. Range
-425 Degrees to 1200 Degrees F
Specific Pipe Fitting Shape
90 Degrees Elbow
Standards
ANSI B31.1
Fittings Sub-Category
Elbows
Max. Pressure
5500 psi
Application
Air, Natural Gas, Oil
Fitting Side B Gender
Female
Includes Pre-Applied Thread Sealant
No
Material Grade
316
Color
Silver
Maximum Operating Pressure
5,500 psi
Includes Seal
No
Low Lead Compliance Level
Not Compliant
Fitting Side B Type
NPT
Fitting Side A Type
NPT
Fitting Side A Gender
Female

Description

The PARKER - 2-2 FE-SS is a 90-degree elbow stainless steel pipe fitting designed to connect two 1/8 inch pipes at a right angle, facilitating a change in flow direction. It is made from 316 stainless steel and is suitable for use with air, natural gas, and oil within the specified operating conditions. This fitting features female National Pipe Tapered (NPT) threaded connections on both ends. It supports a maximum operating pressure of 5,500 psi and an operating temperature range from -425 to 1200 degrees Fahrenheit, making it suitable for use in various industrial piping systems compliant with ANSI B31.1 standards. Key Features:

  • Pipe size: 1/8 inch nominal diameter on both ends.
  • Connection type: Female NPT threads on Side A and Side B.
  • Material grade: 316 stainless steel.
  • Maximum operating pressure: 5,500 psi.
  • Temperature range: -425°F to 1200°F.
  • Overall length: 1 5/16 inches; fitting length: 0.66 inches.
  • Hex wrench size: 9/16 inch across flats.
  • Suitable for use with air, natural gas, and oil within the specified operating conditions.
  • Does not include pre-applied thread sealant or additional sealing components.
